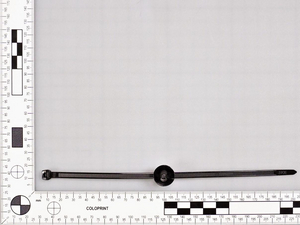

Fixing tie for hole (round)/for cable bundles, outside serrated, ∅1.0-45.0mm, black, 500
Art.-No. 156-02999 | T50ROSAHD6.5SD-3-PA66HS/PA66HIRHS-BK Details

  • Pre-assembled 2-piece fixing tie with arrowhead foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Arrowhead simply locks into place
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
Show more

Request your individual offer now

Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing.
Cable Tie Polyamide 6, heat stabilised (PA6HS)
Colour Black (BK)
Fixation Method arrowhead
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position none
Local order number T50ROSAHD6.5SD-PA66HIRHS-BK
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION T50ROSAHD6.5SD-3-PA66HS/PA66HIRHS-BK
Pack Cont. 500

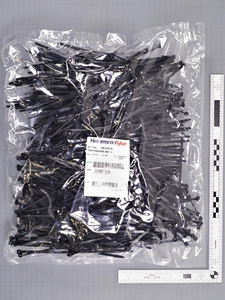

Package Content packed in Bag
Product Family 2-piece fixing ties with arrowhead, with disc, for round holes
Product Group 2-piece fixing ties with arrowhead, with disc
Tie Closure plastic pawl
Type T50ROSAHD6.5SD-3
Variant Outside Serrated
Bundle Diameter max (metric) 45.0mm
Bundle ∅ 1.0-45.0mm
Bundle ∅ min. 1.0mm
Disc ∅ 16.0mm
Length (L) 200.0mm
Mechanical Strength 225N
Panel Thickness max. 2.5 - 3.5mm
Thickness (T) 1.3mm
Weight/Unit 0.001965kg
Width (W) 4.6mm
for Hole ∅ (FH) 6.3 - 6.7 mm
for Panel Thickness min - max 2.5 - 3.5 mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026644349
Packaging 1 - Height (m) 0.085m
Packaging 1 - Length (m) 0.45m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01492
Packaging 1 - Weight (kg) 1.011635kg
Packaging 1 - Width (m) 0.39m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 4500
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 9.924715kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 54000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 140.082kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
