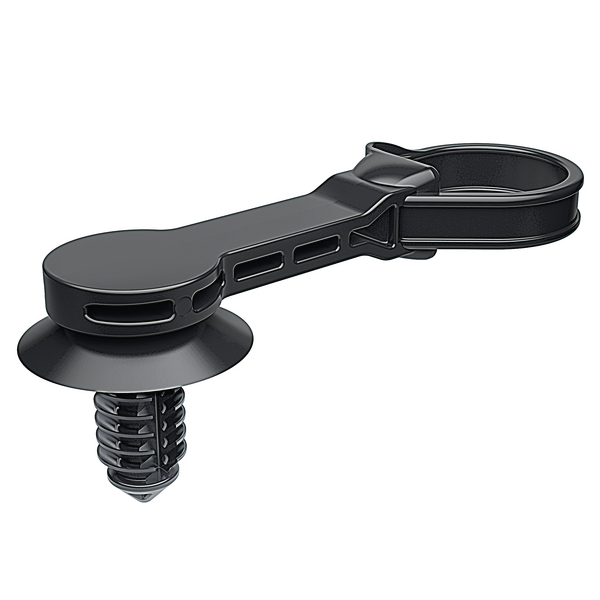

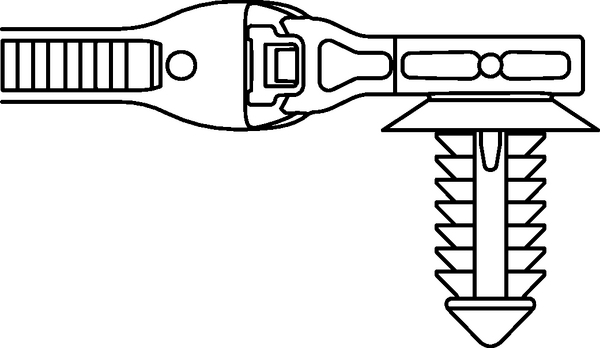

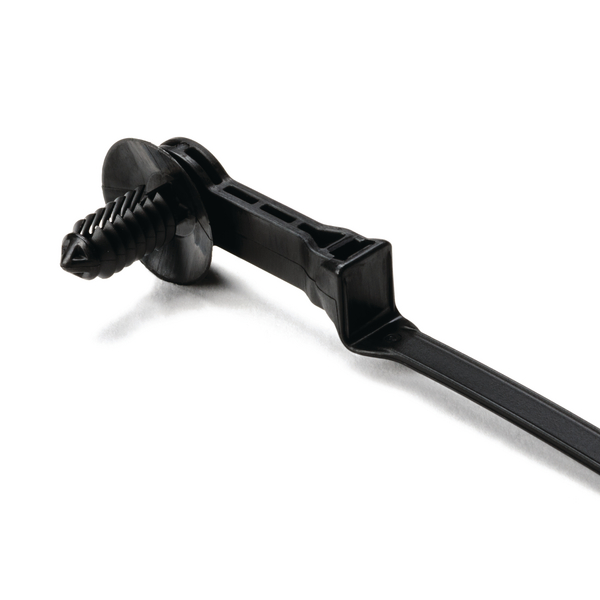

Fixing tie for hole (round), outside serrated, ∅1.6-50.0mm, black, 500pcs.
Art.-No. 157-00164
| T50ROSFT6SO25R-PA66HIRHSUV-BK
|
Details
- Bundling and fixing solution
- Ideal combination of materials and design
- Different positions of the fixing anchor are available to fit installation space
Request your individual offer now
Request quote
More products in this product group:
| Colour | Black (BK) |
| Fixation Method | Fir tree for round holes |
| Identification Plate Position | none |
| Local order number | 157-00164 |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | T50ROSFT6SO25R-PA66HIRHSUV-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | Box |
| Product Family | With offset 12.5 and 25.0 mm |
| Product Group | 1-piece fixing ties with fir tree, with disc, with stand-off, for round holes |
| Releasable Closure (Yes/No) | No |
| Short Description | 1-Piece Fixing Ties with Fir Tree and Disc, with Stand-off, for Round Holes |
| Type | T50ROSFT6SO25R |
| Bundle Diameter max (metric) | 50.0mm |
| Bundle ∅ | 1.6-50.0mm |
| Bundle ∅ min. | 1.6mm |
| Disc ∅ | 19.0mm |
| Height (H) | 15.10mm |
| Length (L) | 237.7mm |
| Length (L2) | 25.0mm |
| Min.Tensile Strength | 225N |
| Offset Length | 25.0mm |
| Panel Thickness max. | 0.6 - 8.25mm |
| Weight/Unit | 0.003kg |
| Width (W) | 5.1mm |
| for Hole ∅ (FH) | 6.1 - 7.0 mm, 6.35 mm (hexagonal) |
| for Panel Thickness min - max | 0.6 - 8.3 mm |
| for Panel Thickness min - max | 0 - 0.3 " |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026465159 |
| Packaging 1 - Height (m) | 0.11m |
| Packaging 1 - Length (m) | 0.31m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00989m³ |
| Packaging 1 - Weight (kg) | 1.500001kg |
| Packaging 1 - Width (m) | 0.29m |
| Packaging 3 - Height (m) | 0.3730625m |
| Packaging 3 - Length (m) | 0.587375m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.063m³ |
| Packaging 3 - Weight (kg) | 9.820006kg |
| Packaging 3 - Width (m) | 0.2873375m |
| Packaging 4 - Height (m) | 1.263m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 36000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.212m³ |
| Packaging 4 - Weight (kg) | 138.84kg |
| Packaging 4 - Width (m) | 0.8m |
