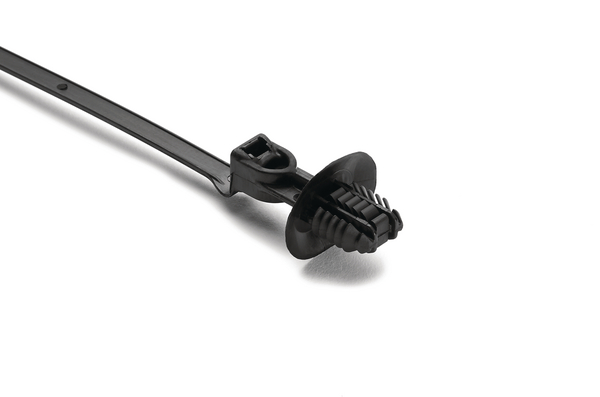

Fixing tie for hole (oval), outside serrated, ∅2.0-50.0mm, black, 1000pcs.
Art.-No. 157-00218
| T50ROSFTOVAL12.5SO-PA66HIRHSUV-BK
|
Details
- Bundling and fixing solution
- Ideal combination of materials and design
- Different positions of the fixing anchor are available to fit installation space
- 1-Piece Fixing Tie with defined offset 12.5 and 25.0 mm
Request your individual offer now
Request quote
More products in this product group:
| Application Tool | ProCut 9 no battery, EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO7, EVO7SP, EVO7iSP, EVO9, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT |
| Colour | Black (BK) |
| Fixation Method | Fir Tree for oval holes |
| Identification Plate Position | none |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | T50ROSFTOVAL12.5SO-PA66HIRHSUV-BK |
| Pack Cont. | 1000pcs. |
| Package Content packed in | Carton |
| Product Family | with offset 12.5 and 25.0 mm |
| Product Group | 1-piece fixing ties with fir tree, with disc, with stand-off, for oval holes |
| Releasable Closure (Yes/No) | No |
| Type | T50ROSFTOVAL12.5SO |
| Variant | Outside Serrated |
| Bundle Diameter max (metric) | 50.0mm |
| Bundle ∅ | 2.0-50.0mm |
| Bundle ∅ min. | 2.0mm |
| Disc ∅ | 17.63 x 23.63mm |
| Fixing Hole Shape | Oval |
| Height (H) | 12.85mm |
| Length (L) | 231.3mm |
| Length (L2) | 12.5mm |
| Min.Tensile Strength | 222.4N |
| Offset Length | 12.5mm |
| Panel Thickness max. | 0.6 - 6.75mm |
| Thickness (T) | 1.5mm |
| Weight/Unit | 0.002542kg |
| Width (W) | 5.1mm |
| for Hole ∅ (FH) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.6 - 6.8 mm |
| for Panel Thickness min - max | 0 - 0.3 " |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026494494 |
| Packaging 1 - Height (m) | 0.13m |
| Packaging 1 - Length (m) | 0.56m |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.02184m³ |
| Packaging 1 - Weight (kg) | 2.542001kg |
| Packaging 1 - Width (m) | 0.3m |
| Packaging 3 - Height (m) | 0.37465m |
| Packaging 3 - Length (m) | 0.59055m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0646m³ |
| Packaging 3 - Weight (kg) | 8.446003kg |
| Packaging 3 - Width (m) | 0.2921m |
| Packaging 4 - Height (m) | 1.269m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 36000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.218m³ |
| Packaging 4 - Weight (kg) | 122.352kg |
| Packaging 4 - Width (m) | 0.8m |
