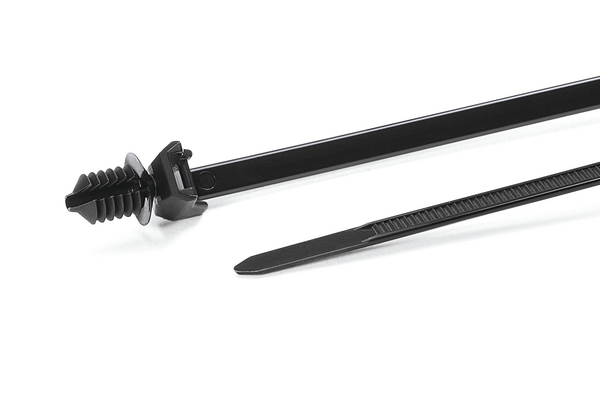

Fixing tie for hole (round), outside serrated, ∅1.0-32.0mm, black, 500pcs.
Art.-No. 157-00045 | T50SOSFT6D10E-PA66HS-BK |  Details

1-piece fixing tie with fir tree for a round hole.

    This product is not available anymore.
    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download Datasheet
    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing.
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Local order number T50SOSFT6D10E-PA66-BK-D1
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SOSFT6D10E-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Family Fir tree parts FT6
    Product Group 1-piece fixing ties with fir tree, with disc, for round holes
    Releasable Closure (Yes/No) No
    Short Description 1-piece fixing ties with fir tree, with disc, for round holes 163x4.6 mm, heat stabilised, black
    Tie Closure plastic pawl
    Type T50SOSFT6D10E
    Variant Outside Serrated
    Bundle Diameter max (metric) 32.0mm
    Bundle ∅ 1.0-32.0mm
    Bundle ∅ min. 1.0mm
    Disc ∅ 9.8mm
    Length (L) 163.0mm
    Min.Tensile Strength 225N
    Thickness (T) 1.3mm
    Weight/Unit 0.001298kg
    Width (W) 4.6mm
    for Hole ∅ (FH) 5.8 - 6.2 mm
    for Panel Thickness min - max 0.8 - 5.5 mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026293554
    Packaging 1 - Height (m) 0.08m
    Packaging 1 - Length (m) 0.24m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00672m³
    Packaging 1 - Weight (kg) 0.678135kg
    Packaging 1 - Width (m) 0.35m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 7000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 10.31389kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 84000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 144.744kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
