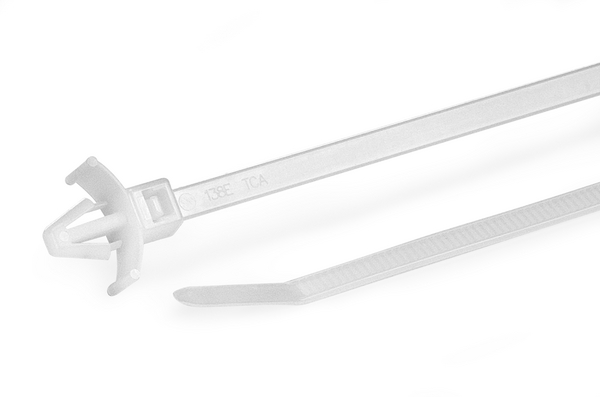

Fixing tie for hole (round), inside serrated, ∅1.5-16.0mm, natural, 500pcs.
Art.-No. 126-00101
| T50VSL5-PA66-NA
|
Details
- Easy to assemble without the need for a tool
- Cable tie head always situated in defined position
- Arrowhead simply locks into place
- Supporting legs provide a secure and firm fixing in areas where space is limited
Request your individual offer now
Request quote
More products in this product group:
| Application | For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building. |
| Colour | Natural (NA) |
| Fixation Method | arrowhead |
| Identification Plate Position | none |
| Local order number | T50VSL5.NN6P |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | T50VSL5-PA66-NA |
| Pack Cont. | 500pcs. |
| Package Content packed in | Box |
| Product Family | for round holes |
| Product Group | 1-Piece Fixing Ties with Arrowhead, with Wings |
| Releasable Closure (Yes/No) | No |
| Short Description | 1-Piece Fixing Tie with Arrowhead and Wings PA66 100x4.6 natural |
| Tie Closure | plastic pawl |
| Type | T50VSL5 |
| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 16.0mm |
| Bundle ∅ | 1.5-16.0mm |
| Bundle ∅ min. | 1.5mm |
| Disc ∅ | 18.5mm |
| Length (L) | 100mm |
| Min.Tensile Strength | 225N |
| Panel Thickness max. | 1.0 – 2.6mm |
| Thickness (T) | 1.2mm |
| Weight/Unit | 0.001128kg |
| Width (W) | 4.6mm |
| for Hole ∅ (FH) | 6.1 - 6.3 mm |
| for Panel Thickness min - max | 1 - 2.6 mm |
| for Panel Thickness min - max | 0 - 0.1 " |
Download
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | csa-C22.2 no. 62275 |
| UL OCD link | Link |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E64963 |
|
|
|
| Country of Origin | GB |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 5022660337116 |
| Packaging 1 - Height (m) | 0.1m |
| Packaging 1 - Length (m) | 0.315m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00614m³ |
| Packaging 1 - Weight (kg) | 0.564001kg |
| Packaging 1 - Width (m) | 0.195m |
| Packaging 3 - Height (m) | 0.364m |
| Packaging 3 - Length (m) | 0.563m |
| Packaging 3 - Qty | 8000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0777m³ |
| Packaging 3 - Weight (kg) | 9.985016kg |
| Packaging 3 - Width (m) | 0.379m |
| Packaging 4 - Height (m) | 1.236m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 96000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.187m³ |
| Packaging 4 - Weight (kg) | 140.82kg |
| Packaging 4 - Width (m) | 0.8m |
