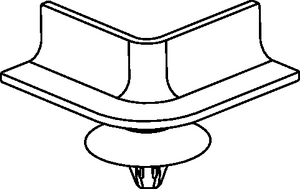

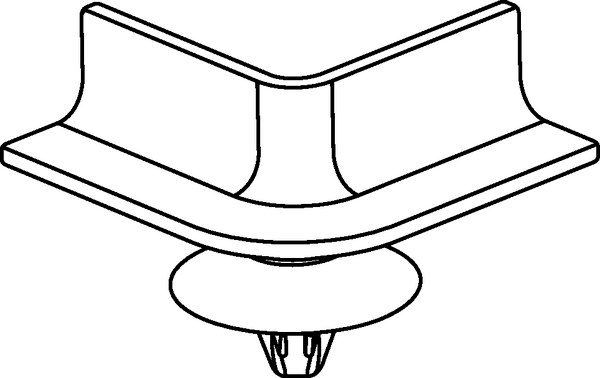

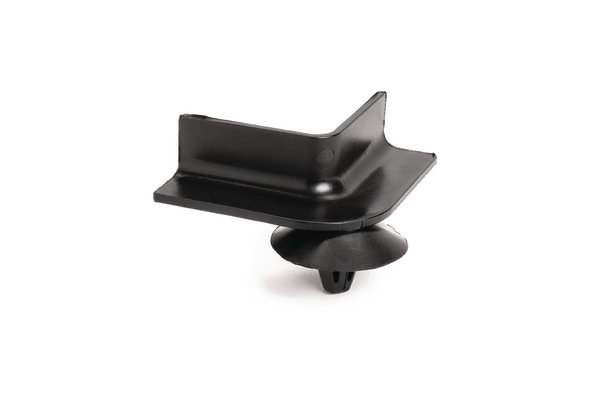

Bundling clip for hole (round), L=50.0mm, black, 4000pcs.
Art.-No. 151-00994 | BC90AH-PA66HIRHSUV-BK |  Details

Disc protects against vibration as well as leakage of debris into the hole.

    • These mini channels with their 90 degree design are a solution for routing a wire harness around a corner
    • The additional fixing element allows the harness to be fixed at this location
    • The mini channels can be used with a wide range of panel thicknesses and hole diameters
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application The mini cable channel family allows a cost effective routing solution that provides protection and configurable routing. Pieces are modular and interchangeable, providing high levels of customization. Mini channels replace engineered channels which are costly to design and develop.
    Colour Black (BK)
    Fixation Method arrowhead
    Local order number 151-00994
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION BC90AH-PA66HIRHSUV-BK
    Pack Cont. 4000pcs.
    Package Content packed in Box
    Product Family With fixing element
    Product Group Mini cable channel family for corners
    Type BC90AH
    Angle 90
    Bundling Bar Length 50.0mm
    Disc ∅ 21.34mm
    Height (H) 24.0mm
    Length (L) 25.0mm
    Length (L2) 25.0mm
    Panel Thickness max. 0.5 - 1.8mm
    Width (W) 1.5mm
    for Hole ∅ (FH) 6.2 - 6.8 mm
    for Panel Thickness min - max 0.5 - 1.8 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026448961
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Width (m) 0.396875m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121717
