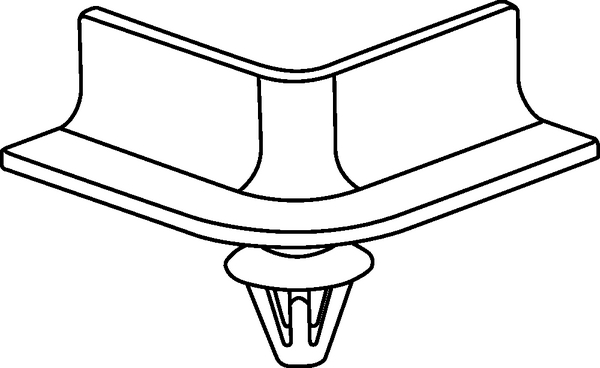

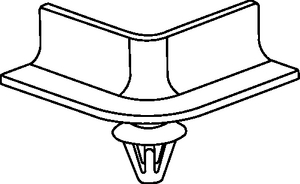

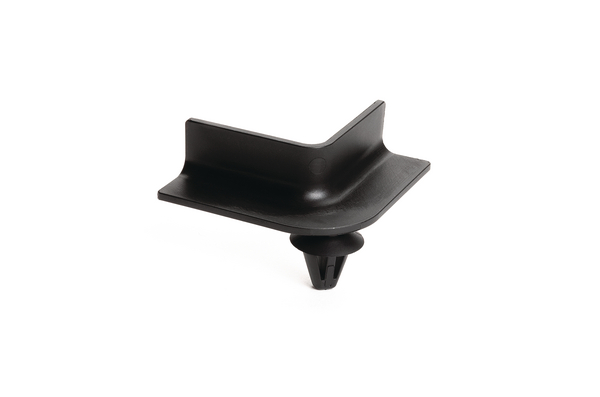

Bundling clip for hole (round), L=50.0mm, black, 4000pcs.
Art.-No. 151-01109
| BC90AH2-PA66HIRHSUV-BK
|
Details
- These mini channels with their 90 degree design are a solution for routing a wire harness around a corner
- The additional fixing element allows the harness to be fixed at this location
- The mini channels can be used with a wide range of panel thicknesses and hole diameters
Request your individual offer now
Request quote
More products in this product group:
| Application | The mini cable channel family allows a cost effective routing solution that provides protection and configurable routing. Pieces are modular and interchangeable, providing high levels of customization. Mini channels replace engineered channels which are costly to design and develop. |
| Colour | Black (BK) |
| Fixation Method | arrowhead |
| Local order number | 151-01109 |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | BC90AH2-PA66HIRHSUV-BK |
| Pack Cont. | 4000pcs. |
| Package Content packed in | Bag |
| Product Family | With fixing element |
| Product Group | Mini cable channel family for corners |
| Type | BC90AH2 |
| Angle | 90 |
| Bundling Bar Length | 50.0mm |
| Diameter (D) | 12.58mm |
| Disc ∅ | 12.58mm |
| Height (H) | 23.6mm |
| Height (H2) | 10.0mm |
| Length (L) | 25.0mm |
| Length (L2) | 25.0mm |
| Panel Thickness max. | 1.0 - 1.5mm |
| Weight/Unit | 0.002007kg |
| Width (W) | 1.5mm |
| for Hole ∅ (FH) | 6.2 - 6.8 mm |
| for Panel Thickness min - max | 1 - 1.5 mm |
| ∅ D (imperial) | 0.50" |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026454535 |
| Packaging 1 - Height (m) | 0.201m |
| Packaging 1 - Length (m) | 0.599m |
| Packaging 1 - Qty | 4000 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.04684m³ |
| Packaging 1 - Weight (kg) | 8.028001kg |
| Packaging 1 - Width (m) | 0.389m |
| Packaging 3 - Height (m) | 0.2159m |
| Packaging 3 - Length (m) | 0.606425m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.052m³ |
| Packaging 3 - Weight (kg) | 8.888001kg |
| Packaging 3 - Width (m) | 0.396875m |
| Packaging 4 - Height (m) | 1.224m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 60000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.175m³ |
| Packaging 4 - Weight (kg) | 154.32kg |
| Packaging 4 - Width (m) | 0.8m |
