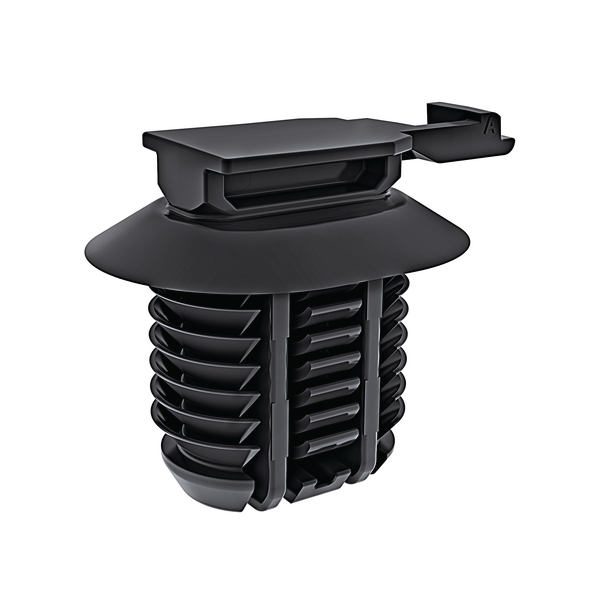

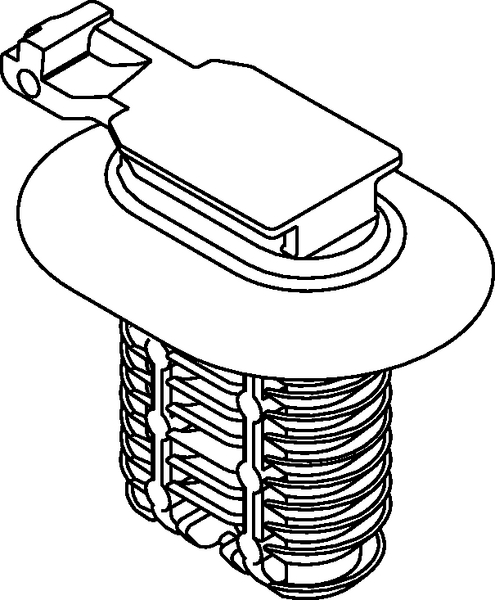

Connector clip, black, 1000pcs.
Art.-No. 151-00807 | CC10-PA66HIRHSUV-BK Details

Request your individual offer now

Colour Black (BK)
Fixation Method Fir Tree
Local order number 151-00807
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION CC10-PA66HIRHSUV-BK
Pack Cont. 1000pcs.
Package Content packed in Carton
Product Family With FirTree
Product Group Connector Clips for Oval Holes
Type CC10
Fixing Hole Shape Oval
Height (H) 28.9mm
Height (H2) 21.08mm
Length (L) 33.05mm
Panel Thickness max. 0.6 - 15.5mm
Weight/Unit 0.002938kg
Width (W) 21.59mm
for Hole ∅ (FH) 9.0 x 17.0 mm
for Panel Thickness min - max 0.5 - 15.5 mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
Country of Origin US
Customs Number 39269097
GTIN-13 / EAN 4031026406114
Packaging 1 - Height (m) 0.145m
Packaging 1 - Length (m) 0.43m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01683
Packaging 1 - Weight (kg) 2.938001kg
Packaging 1 - Width (m) 0.27m
Packaging 3 - Height (m) 0.1508125m
Packaging 3 - Length (m) 0.4365625m
Packaging 3 - Qty 1000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0176
Packaging 3 - Weight (kg) 3.278001kg
Packaging 3 - Width (m) 0.2667m
Packaging 4 - Height (m) 1.201m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 42000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.153
Packaging 4 - Weight (kg) 158.676kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
