22/12/2024

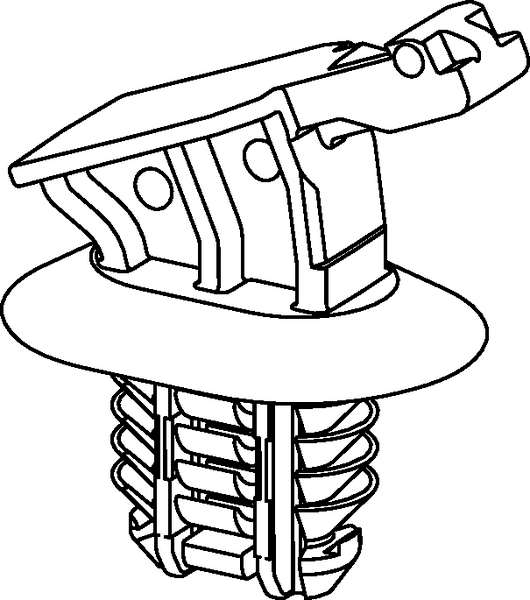

Connector clip for connector/for hole (oval), black, 5000pcs.
Art.-No. 151-02051 | CC22-PA66HIRHSUV-BK |  Details

Connector clip design meets USCAR EWCAP-005-11 clip slot specifications, assuring compliance.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Local order number 151-02051
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION CC22-PA66HIRHSUV-BK
    Pack Cont. 5000pcs.
    Package Content packed in Carton
    Product Family With FirTree
    Product Group Connector Clips for Oval Holes
    Type CC22
    Fixing Hole Shape Oval
    Height (H) 26.0mm
    Height (H2) 12.85mm
    Length (L) 25.71mm
    Panel Thickness max. 0.6 - 6.75mm
    Width (W) 17.53mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026584317
    Packaging 1 - Weight (kg) 6.577089kg
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Weight (kg) 8.53kg
    Packaging 3 - Width (m) 0.396875m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
    Show all
