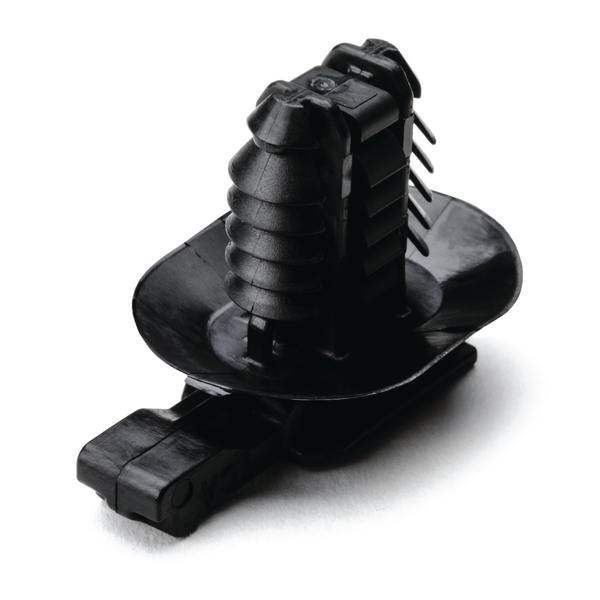

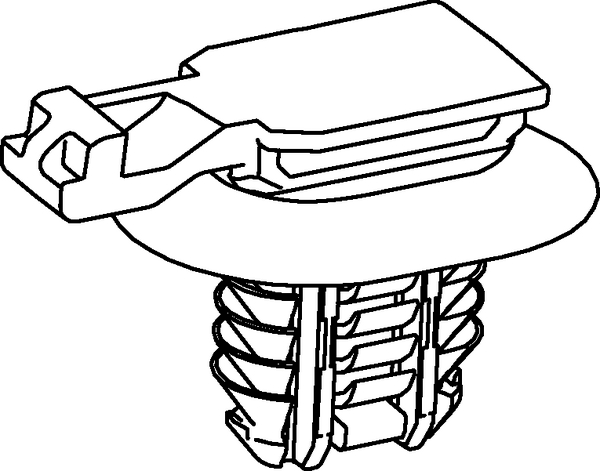

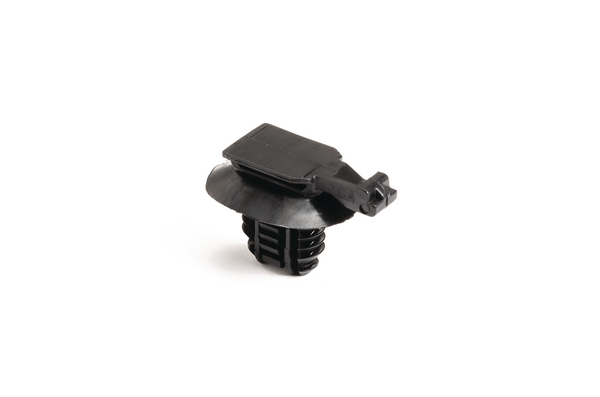

Connector clip for hole (oval), EWCAP-005-11, black, 5000pcs.
Art.-No. 151-00925 | CCOVAL-PA66HIRHSUV-BK Details

Request your individual offer now

Colour Black (BK)
Fixation Method Fir Tree for oval holes
Local order number 151-00925
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION CCOVAL-PA66HIRHSUV-BK
Pack Cont. 5000pcs.
Package Content packed in Carton
Short Description Connector Clip, oval hole 6.2 x 12.2 mm/6.5 x 12.5 mm/6.5 x 13.0 mm/7.0 x 12.0 mm, fir tree, high impact modified, heat and UV-stabilised, black
Type CCOVAL
Variant 6.2 x 12.2 mm 6.5 x 12.5 mm 6.5 x 13.0 mm 7.0 x 12.0 mm
Fixing Hole Shape Oval
Height (H) 19.98mm
Height (H2) 12.83mm
Length (L) 29.34mm
Panel Thickness max. 0.6 - 6.0mm
Weight/Unit 0.001198kg
Width (W) 17.63mm
for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
for Panel Thickness min - max 0.6 - 6 mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
Country of Origin US
Customs Number 39269097
GTIN-13 / EAN 4031026435169
Packaging 1 - Qty 5000
Packaging 1 - Type Bag
Packaging 1 - Weight (kg) 5.990001kg
Packaging 3 - Height (m) 0.212725m
Packaging 3 - Length (m) 0.51435m
Packaging 3 - Qty 5000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0347
Packaging 3 - Weight (kg) 6.610001kg
Packaging 3 - Width (m) 0.3175m
Packaging 4 - Height (m) 1.209m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 100000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.161
Packaging 4 - Weight (kg) 153.2kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
