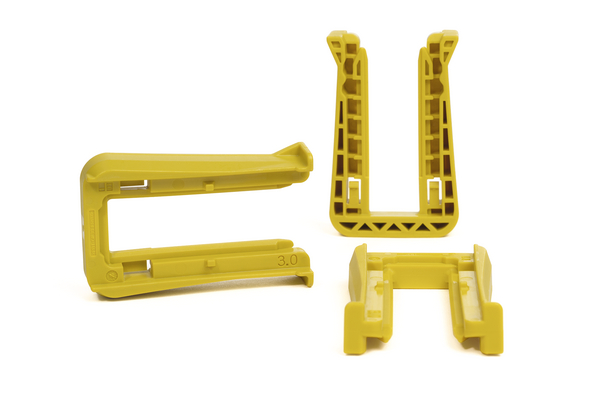

Fixing slider for connectors, T=3.0mm, yellow, 1200pcs.
Art.-No. 151-02413 | FSE3.0-PBTGF30FR-YE |  Details

Fixing Slider (V0)

    • Color coding for panel thickness: red (2.5 mm), yellow (3.0 mm), grey (1.5 mm and 3.5mm), natural (1.0 mm and 1.5 mm)
    • Panel thickness is marked on the slider
    • Permanent fixation of the connectors in the mounting hole by using the slider
    • These parts are also available in V0 material (flame retardent) e.g. for public transport
    • Fixing slider fit for the Aptiv connector XS and SP series
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application The slider is used to keep the plugs firmly and vibration-proof in place, even when movement acts on it.
    Colour Yellow (YE)
    Local order number E Slider 3,0 V0_PBTGF30 FR17_YE_17-1642
    Material Polybutylene Terephthalate glass-fibre reinforced, flame retardant (PBTGF30FR)
    PART DESCRIPTION FSE3.0-PBTGF30FR-YE
    Pack Cont. 1200pcs.
    Package Content packed in Bag
    Product Family Fixing Slider E, 3.0 mm CTCS-series
    Product Group Connector Accessory Fixing Slider, Group E
    Type FSE3.0
    Height (H) 12.68mm
    Length (L) 56.5mm
    Panel Thickness max. 3.0mm
    Weight/Unit 0.00859kg
    Width (W) 36.2mm
    Width (W2) 14.1mm
    for Panel Thickness min - max 3 - 3 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026608280
    Packaging 1 - Height (m) 0.8m
    Packaging 1 - Length (m) 0.6m
    Packaging 1 - Qty 1200
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.192m³
    Packaging 1 - Weight (kg) 10.373411kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 1200
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 11.023411kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 24000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 241.46kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
