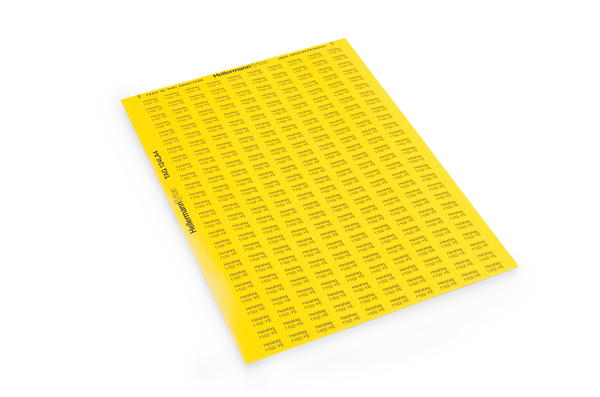

Label, yellow, laser print, 9.00x15.00mm, 10000pcs.
Art.-No. 594-21102
| TAG122LA4-1102-YE
|
Details

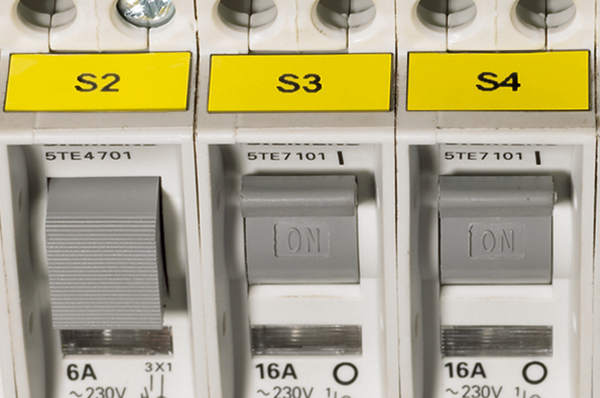

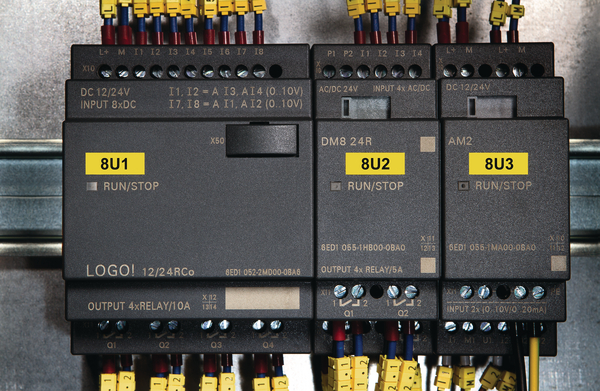

- Yellow rating labels for component marking and control cabinets
- For use on flat and smooth surfaces
- Crisp and clear text, barcodes and graphics
- Simple and efficient label design and printing with TagPrint Pro labelling software
- Templates available from www.hellermanntyton.com for those wishing to use MS Word
- Clear protective box to ensures labels stay as good as new
Request your individual offer now
Request quote
More products in this product group:
| Application | Used where clarity of print is most important and is ideally suited for printing barcodes and high definition graphics. A range of sizes and materials are available to suit most cable marking and asset identification needs. For problem-free printing, we recommend our easy to use windows based Tagprint Pro software program, which comes pre-loaded with all our standard label templates so you can start producing labels immediately. |
| Application Method | The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance. |
| Chem. Material Properties | Excellent resistance against water, alcohol, most oils, lubricants, fuels, aliphatic solvents, weak acid, salts, alkalis and UV light. |
| Colour | Yellow (YE) |
| Local order number | TAG122LA4-1102-YE |
| Material | Type 1102, Polyester, yellow (1102) |
| PART DESCRIPTION | TAG122LA4-1102-YE |
| Pack Cont. | 10000pcs. |
| Package Content packed in | Pack |
| Paper Format | A4 |
| Product Family | Helatag 1102 (Yellow) |
| Product Group | Labels for control panel identification, laser |
| Self adhesive (Yes/No) | Yes |
| Short Description | Labels for control panel identification, laser 15x9mm yellow |
| Type | TAG122LA4 |
Download
| Adhesive | Acrylic |
| Curing Temperature | from 0 °C |
| ELV compliant Dir. Art. 4 (2) | YES |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Initial tack | 13N |
| Initial tack | FINAT FTM 9 |
| Operating Temperature | -40 °C to +150 °C |
| Pre-Printed | No |
| ROHS compliant | Yes |
| Shear strength | 1000min |
| Shear strength test method | FINAT FTM 8 |
| Shelf Life | Minimum 1 year upon receipt / maximal 4 years after production date. |
| Specifications |
|
| UL Recognized (US and Canada) | Yes |
| Country of Origin | DE |
| Customs Number | 39199080 |
| GTIN-13 / EAN | 4031026294315 |
| Labels per Row | 12pcs. |
| Labels per Sheet | 372pcs. |
| Packaging 1 - Height (m) | 0.018m |
| Packaging 1 - Length (m) | 0.24m |
| Packaging 1 - Qty | 10000 |
| Packaging 1 - Type | Pack |
| Packaging 1 - Volume (m³) | 0.00137m³ |
| Packaging 1 - Weight (kg) | 0.536kg |
| Packaging 1 - Width (m) | 0.317m |
| Sheets per Pack | 27pcs. |
| Storage Temperature | +15 °C to +25 °C |
| Storage conditions | 45% ±5% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness., Must be stored in a dark place. |
