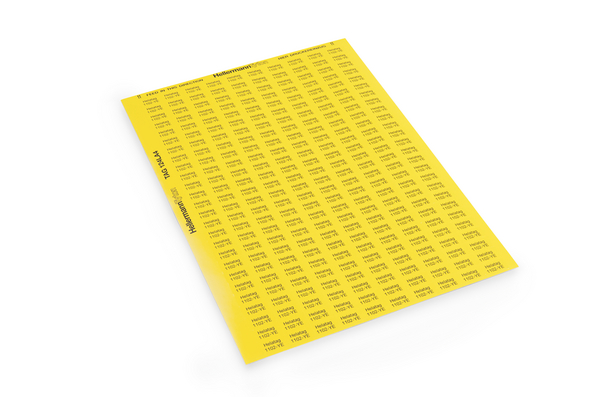

Label, yellow, laser print, 10.16x10.16mm, 10000pcs.
Art.-No. 594-61102 | TAG156LA4-1102-YE | Details

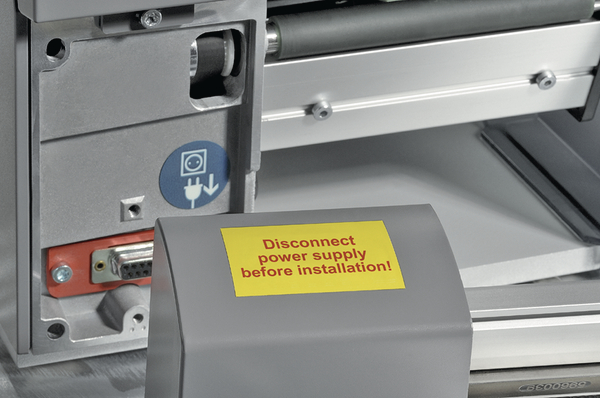

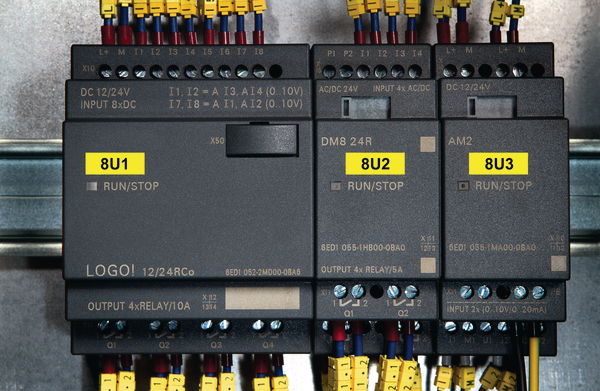

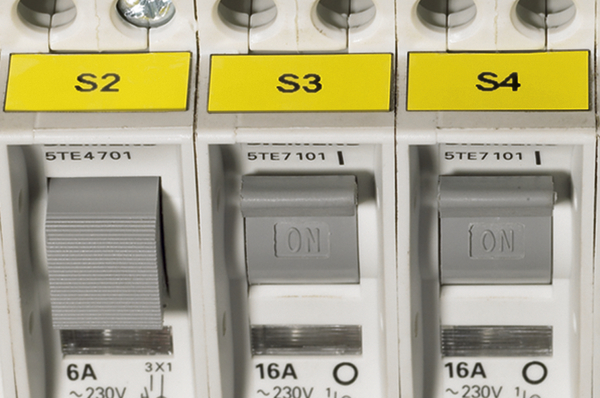

Yellow rating labels for component marking and control cabinets
For use on flat and smooth surfaces
Crisp and clear text, barcodes and graphics
Simple and efficient label design and printing with TagPrint Pro labelling software
Templates available from www.hellermanntyton.com for those wishing to use MS Word
Clear protective box to ensures labels stay as good as new

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Application	Used where clarity of print is most important and is ideally suited for printing barcodes and high definition graphics. A range of sizes and materials are available to suit most cable marking and asset identification needs. For problem-free printing, we recommend our easy to use windows based Tagprint Pro software program, which comes pre-loaded with all our standard label templates so you can start producing labels immediately.
Application Method	The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Chem. Material Properties	Excellent resistance against water, alcohol, most oils, lubricants, fuels, aliphatic solvents, weak acid, salts and alkalis.
Colour	Yellow (YE)
Local order number	TAG156LA4-1102-YE
Material	Type 1102, Polyester, yellow (1102)
PART DESCRIPTION	TAG156LA4-1102-YE
Pack Cont.	10000pcs.
Package Content packed in	Pack
Paper Format	A4
Product Family	Helatag 1102 (Yellow)
Product Group	Labels for control panel identification, laser
Self adhesive (Yes/No)	Yes
Short Description	Labels for control panel identification, laser 10.16x10.16 mm yellow
Type	TAG156LA4


HR	10.16mm
Height (H)	10.16mm
Print Method	laser print
Thickness of Adhesive (TA) nom.	24µm
Thickness of Foil	55
Thickness of foil test method	ISO 534
VR	10.16mm
Weight/Unit	0.000003kg
Width (W)	10.16mm
Width of Liner (WL)	210.00mm

Adhesive	Acrylic
Curing Temperature	from 0 °C
ELV compliant Dir. Art. 4 (2)	YES
Halogen-free	Yes
Hazardous Goods	No
Initial tack	13N
Initial tack	FINAT FTM 9
Operating Temperature	-40 °C to +150 °C
Pre-Printed	No
ROHS compliant	Yes
Shear strength	1000min
Shear strength test method	FINAT FTM 8
Shelf Life	Minimum 1 year upon receipt / maximal 4 years after production date.
Specifications
UL Recognized (US and Canada)	Yes
UV-Stabilised	Yes

Country of Origin	DE
Customs Number	39199080
GTIN-13 / EAN	4031026294537
Labels per Row	19pcs.
Labels per Sheet	532pcs.
Packaging 1 - Height (m)	0.017m
Packaging 1 - Length (m)	0.315m
Packaging 1 - Qty	10000
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00127m³
Packaging 1 - Weight (kg)	0.029001kg
Packaging 1 - Width (m)	0.238m
Packaging 3 - Height (m)	0.21m
Packaging 3 - Length (m)	0.32m
Packaging 3 - Qty	120000
Packaging 3 - Type	Carton
Packaging 3 - Volume (m³)	0.0168m³
Packaging 3 - Weight (kg)	0.848kg
Packaging 3 - Width (m)	0.25m
Packaging 4 - Height (m)	1.195m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	6000000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.147m³
Packaging 4 - Weight (kg)	63.4kg
Packaging 4 - Width (m)	0.8m
Sheets per Pack	19pcs.
Storage Temperature	+15 °C to +25 °C
Storage conditions	45% ±5% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness., Must be stored in a dark place.
