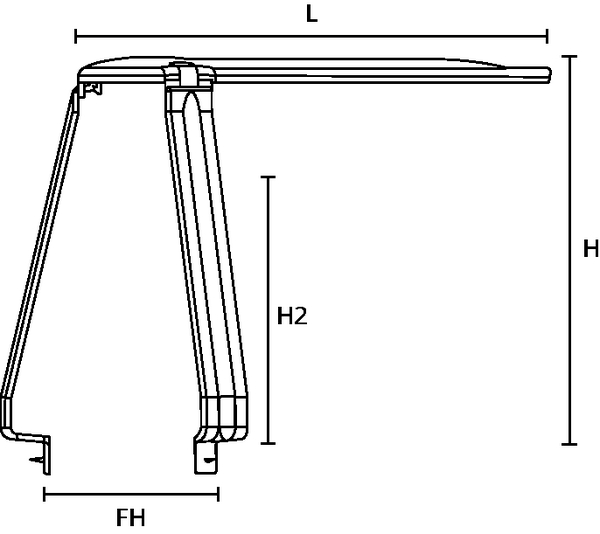

Downlight cover, L=160mm, H=130mm, ∅62 - 120 mm, black, 5pcs.
Art.-No. 148-00121
| SpotClip-III-PA66HS-BK
|
Details

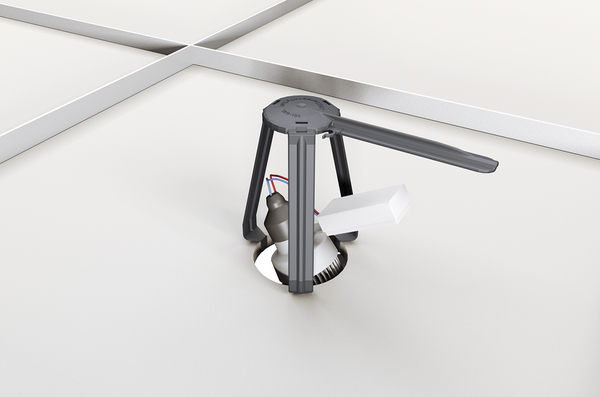

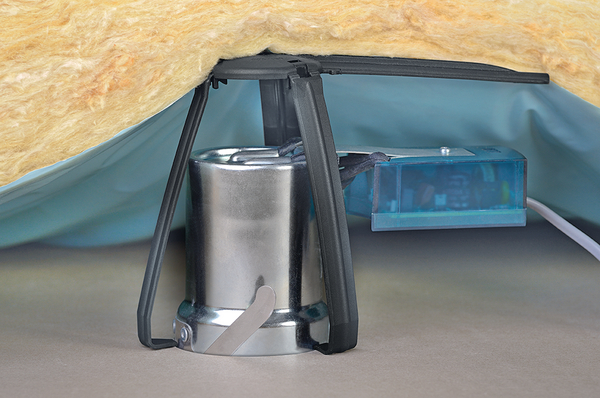

- A mounting support for the external power supply unit provides more space for the downlight installation
- Ensures safety distance between the downlight, damp-proof foil and insulation material
- Flexible installation during or after construction

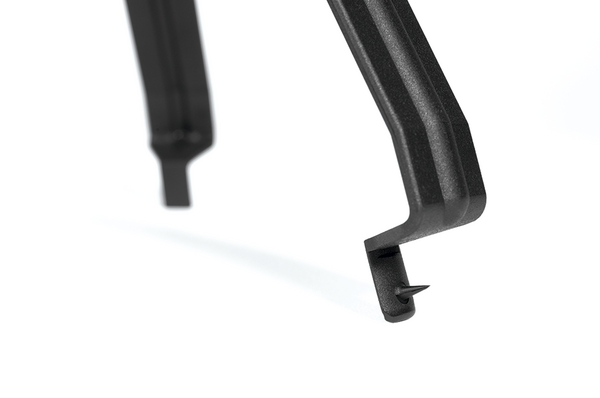

- Additional spikes at the end of the legs prevent SpotClip shifting
- Prevents damage to insulation material caused by overheating
- Flame retardant material according to UL94-V2
- Improves life span and reliability of lamps
- Faster and easier installation and replacement of lamps
- Tested according to EN 60598-1, EN 60598-2-2, and NF C 15100
Request your individual offer now
Request quote
More products in this product group:

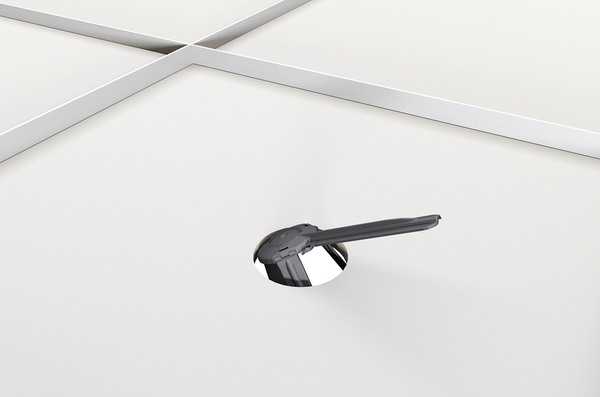

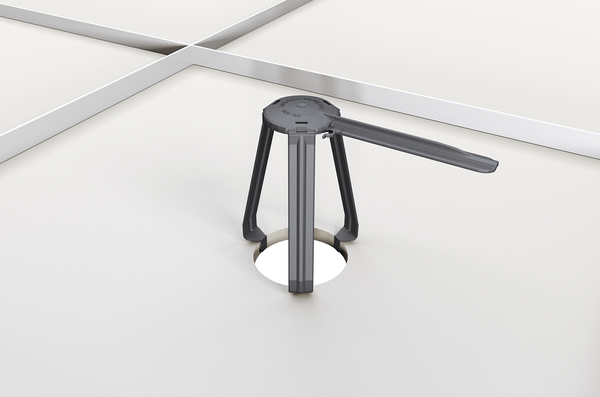

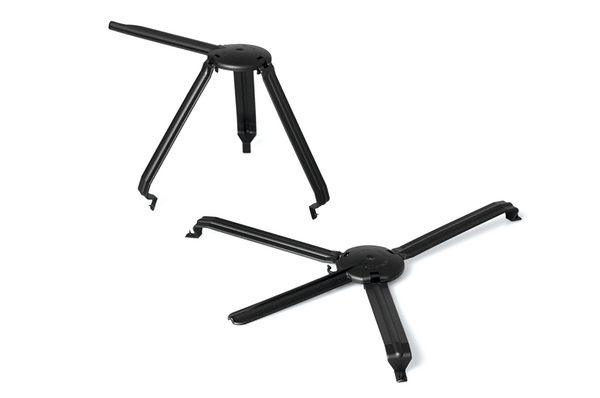

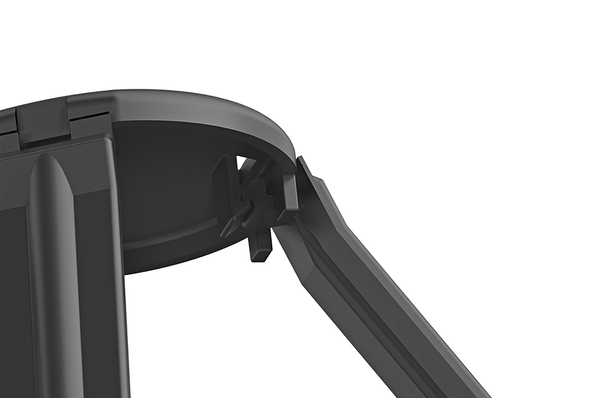

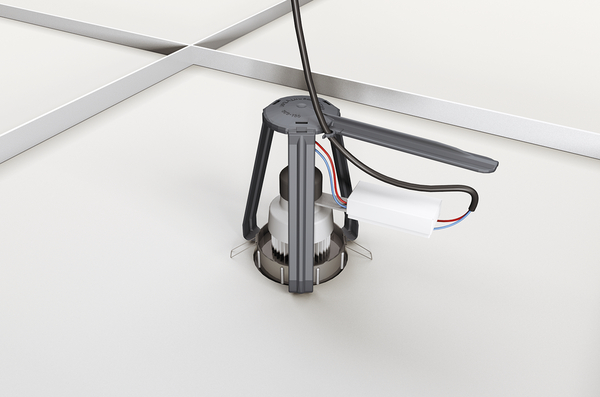

| Application | This further development of SpotClip-II allows the use of an existing power supply. In the case of a spot without power supply, this added straight leg can be cut easily and removed manually. It helps to avoid contact between the insulation and the external power supply of the spot. SpotClip-III will fit to all standard applications with solid insulation material. It is delivered flat with flexible legs. They can be locked within seconds. The height of the this mounting device is depending on the fixing hole diameter. SpotClip-III is suitable for LED and Halogen downlights with a fixing hole diameter from 62 mm to 120 mm. The maximum product height is 130 mm depending on the fixing hole diameter. |
| Colour | Black (BK) |
| Local order number | 148-00121 |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| PART DESCRIPTION | SpotClip-III-PA66HS-BK |
| Pack Cont. | 5pcs. |
| Package Content packed in | Bag |
| Product Family | SpotClip-III |
| Product Group | Downlight Covers - For Residential Buildings |
| Short Description | Downlight Cover for recessed spotlights with Ø 62-120 mm black |
| Type | SpotClip-III |
Download
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2, Glow Wire Test (960 °C) |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Specifications |
|
| Suitable for high voltage luminaires | Yes |
| Suitable for low voltage luminaires (Yes/No) | Yes |
|
|
|
| Country of Origin | FR |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026470511 |
| Packaging 1 - Height (m) | 0.07m |
| Packaging 1 - Length (m) | 0.37m |
| Packaging 1 - Qty | 5 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00907m³ |
| Packaging 1 - Weight (kg) | 0.140001kg |
| Packaging 1 - Width (m) | 0.35m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 50 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 2.05001kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 1000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 62.0kg |
| Packaging 4 - Width (m) | 0.8m |
