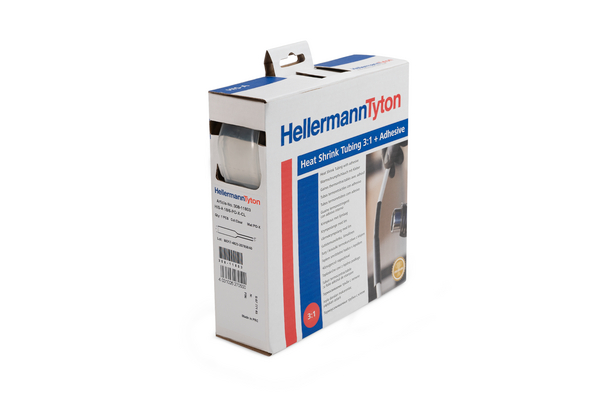

Heat Shrinkable Tubing with Adhesive Liner 3:1 on a Reel 9/3 transparent
Art.-No. 308-10903
| HIS-A-9/3-PO-X-CL
|
Details
- Adhesive lined heat shrink tubing
- Inner wall melts when heated and is forced into gaps
- Adhesive forms seal against moisture as tubing cools
- Protects components
- Available in black and transparent
- 6 sizes for wide range of applications
Request your individual offer now
Request quote
More products in this product group:
| Application | HIS-A forms a seal against moisture and protects against corrosion and mechanical abrasion. |
| Behaviour At Low Temperature | not cracking |
| Behaviour at Heat Shock | not cracking, not fluid, not dripping |
| Behaviour at low Temperature test method | UL 224 |
| Colour | Transparent (CL) |
| Elongation At Heat Aging | 200% |
| Heat Aging Test | 168h/158°C |
| Heat Aging test method | UL 224 |
| Heat Shock Test | 4h/250°C |
| Heat shock test test method | UL 224 |
| Material | Polyolefin, cross-linked (PO-X) |
| Minimum Tensile Strength At Heat Aging | 12MPa |
| PART DESCRIPTION | HIS-A-9/3-PO-X-CL |
| Pack Cont. | 5m |
| Package Content packed in | Box |
| Printable | No |
| Product Family | HIS-A - with adhesive liner |
| Product Group | Heat shrinkable tubing 3:1 on a reel |
| Short Description | Heat Shrinkable Tubing with Adhesive Liner 3:1 on a Reel 9/3 transparent |
| Shrink Ratio | 3:1 |
| Type | HIS-A-9/3 |
| Variant | Thin-Wall |
| With inner glue (Yes/No) | Yes |
Download
| Adhesive | Hot melt adhesive |
| CSA Certified | No |
| Dielectric Strength | 24kV/mm |
| Dielectric Strength test method | IEC 60243 |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break | 600 |
| Elongation at break test method | ASTM D2671 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Insulation Class | A (VDE 0530) |
| Minimum Shrink Temperature | +100 °C |
| Operating Temperature | -55 °C to +125 °C |
| ROHS compliant | Yes |
| Self extinguishing | No |
| Softening Point Adhesive | +85 °C |
| Specifications | CSA |
| Specifications |
|
| Tensile Strength | 14MPa |
| Test Method Tensile Strength | ASTM D2671 |
| Volume Resistance | 10¹⁴ Ω cm |
| Volume Resistance test method | UL 224 |
|
|
|
| Country of Origin | CN |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026270487 |
| Packaging 1 - Height (m) | 0.048m |
| Packaging 1 - Length (m) | 0.164m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Carton |
| Packaging 1 - Volume (m³) | 0.00127m³ |
| Packaging 1 - Weight (kg) | 0.275kg |
| Packaging 1 - Width (m) | 0.161m |
| Packaging 3 - Height (m) | 0.4m |
| Packaging 3 - Length (m) | 0.56m |
| Packaging 3 - Qty | 40 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0829m³ |
| Packaging 3 - Weight (kg) | 11.5kg |
| Packaging 3 - Width (m) | 0.37m |
| Packaging 4 - Height (m) | 0.95m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 320 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.912m³ |
| Packaging 4 - Weight (kg) | 113.0kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 5.0m |
