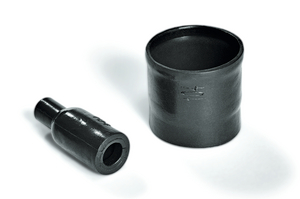

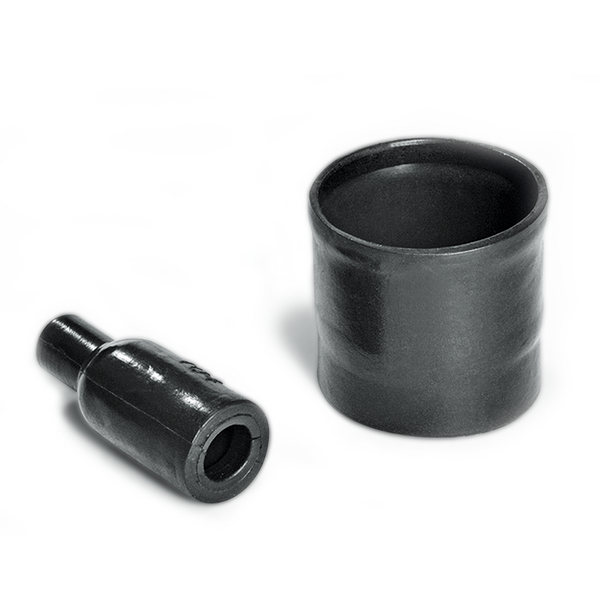

Bottle Shapes, MIL-Style
Art.-No. 401-02035 | 102-4-H-PO-X-BK | Details

100 series supplied / fully recovered.

With circular grooved adaptor for strain relief
Combine with complementary adhesives for environmental sealing
Suitable for small cable diameters

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Bottle Shapes, MIL-Style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	102-4-H
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	102-4-H-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 100 Series, with rib
Product Group	Bottle Shapes, MIL-Style
Type	102-4-H

Product Dimensions


Flexibility	Flexible
HW ± 20%	1.8mm
JW ± 20%	1.8mm
P ± 10%	73.7mm
R max	43.2mm
S nom	21mm
T ± 20%	1mm
Weight/Unit	0.011kg
∅H max b	22.4mm
∅H min a	36.1mm
∅J max b	8.4mm
∅J min. a	36.1mm

Downloads

Specifications

Dielectric Strength	15kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Halogen-free	Yes
Minimum Shrink Temperature	+135 °C
Operating Temperature	-55 °C to +105 °C
ROHS compliant	Yes
Specifications
Tensile Strength	10MPa
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660401930
Packaging 1 - Height (m)	0.04m
Packaging 1 - Length (m)	0.16m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00064m³
Packaging 1 - Weight (kg)	0.011kg
Packaging 1 - Width (m)	0.10m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
