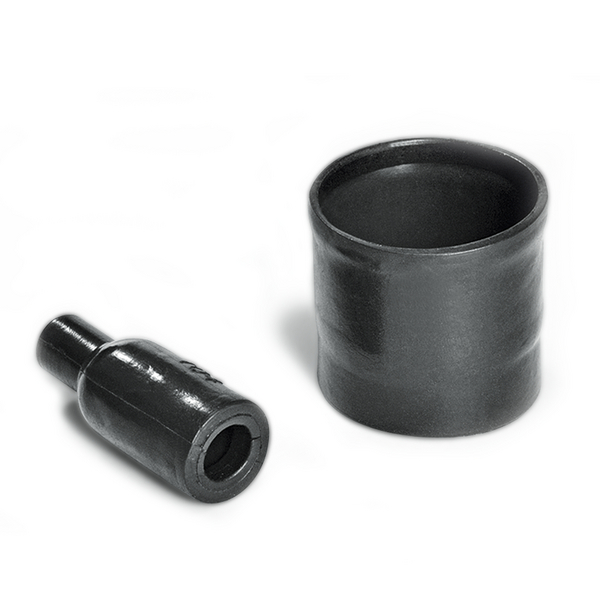

Bottle Shapes, MIL-Style
Art.-No. 401-06043 | 106-4-J-PO-X-BK |  Details

100 series supplied / fully recovered.

    • With circular grooved adaptor for strain relief
    • Combine with complementary adhesives for environmental sealing
    • Suitable for small cable diameters
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Local order number 106-4-J
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 106-4-J-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in Bag
    Product Family Helashrink 100 Series, with rib
    Product Group Bottle Shapes, MIL-Style
    Type 106-4-J
    Flexibility Flexible
    HW ± 20% 1.8mm
    JW ± 20% 1.8mm
    P ± 10% 55.4mm
    R max 26.5mm
    S nom 16.5mm
    T ± 20% 1mm
    Weight/Unit 0.004kg
    ∅H max b 14.2mm
    ∅H min a 31mm
    ∅J max b 6.6mm
    ∅J min. a 31mm
    Dielectric Strength 18kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Minimum Shrink Temperature +135 °C
    Nato number 5970-01-093-3584
    Operating Temperature -55 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 19MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660405518
    Packaging 1 - Height (m) 0.003m
    Packaging 1 - Length (m) 0.016m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0m³
    Packaging 1 - Weight (kg) 0.004kg
    Packaging 1 - Width (m) 0.010m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
