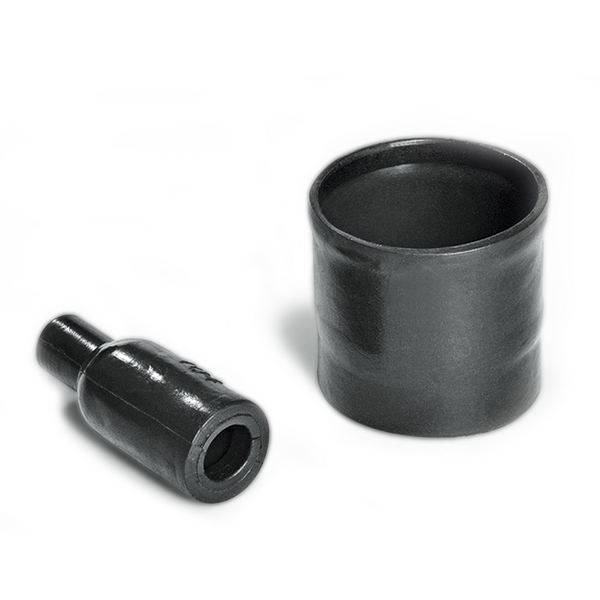

Bottle Shapes, MIL-Style
Art.-No. 401-07025 | 107-4-B7-PO-X-BK | Details

100 series supplied / fully recovered.

With circular grooved adaptor for strain relief
Combine with complementary adhesives for environmental sealing
Suitable for small cable diameters

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Bottle Shapes, MIL-Style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	107-4-B7
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	107-4-B7-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 100 Series, with rib
Product Group	Bottle Shapes, MIL-Style
Type	107-4-B7

Product Dimensions


Flexibility	Semi rigid
HW ± 20%	3.1mm
JW ± 20%	3.1mm
P ± 10%	124.5mm
R max	66mm
S nom	40.6mm
T ± 20%	1.7mm
Weight/Unit	0.4kg
∅H max b	35.1mm
∅H min a	51.9mm
∅J max b	15.8mm
∅J min. a	51.9mm

Downloads

Specifications

Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
ELV compliant Dir. Art. 4 (2)	YES
Flammability	ASTM D635
Hazardous Goods	No
Minimum Shrink Temperature	+135 °C
Nato number	5970-99-756-6243
Operating Temperature	-55 °C to +135 °C
ROHS compliant	Yes
Specifications
Tensile Strength	13MPa
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
Customs Number	39174000
GTIN-13 / EAN	5022660405945
Packaging 1 - Height (m)	0.06m
Packaging 1 - Length (m)	0.21m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00151m³
Packaging 1 - Weight (kg)	0.4kg
Packaging 1 - Width (m)	0.12m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
