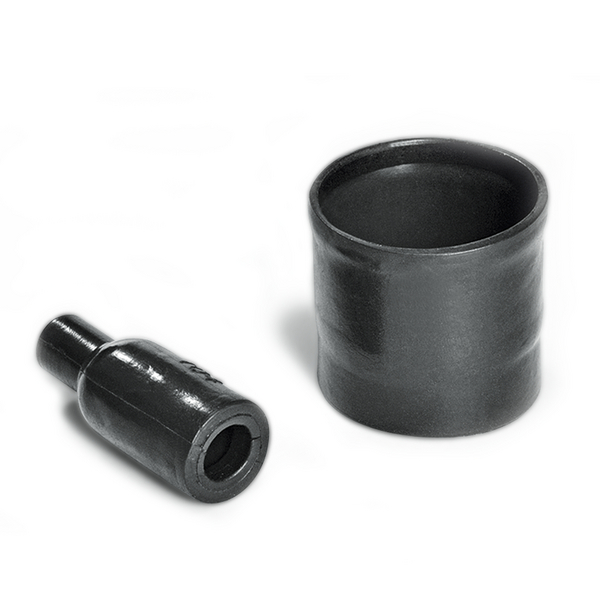

Bottle Shapes, MIL-Style
Art.-No. 401-07032 | 107-4-J-PO-X-BK |  Details

100 series supplied / fully recovered.

    • With circular grooved adaptor for strain relief
    • Combine with complementary adhesives for environmental sealing
    • Suitable for small cable diameters
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Local order number 107-4-J
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 107-4-J-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in Bag
    Product Family Helashrink 100 Series, with rib
    Product Group Bottle Shapes, MIL-Style
    Type 107-4-J
    Flexibility Flexible
    HW ± 20% 3.1mm
    JW ± 20% 3.1mm
    P ± 10% 124.5mm
    R max 66mm
    S nom 40.6mm
    T ± 20% 1.7mm
    Weight/Unit 0.052kg
    ∅H max b 35.1mm
    ∅H min a 51.9mm
    ∅J max b 15.8mm
    ∅J min. a 51.9mm
    Dielectric Strength 18kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Minimum Shrink Temperature +135 °C
    Nato number 5970-01-091-8063
    Operating Temperature -55 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 19MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660406027
    Packaging 1 - Height (m) 0.006m
    Packaging 1 - Length (m) 0.021m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0m³
    Packaging 1 - Weight (kg) 0.052kg
    Packaging 1 - Width (m) 0.012m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
