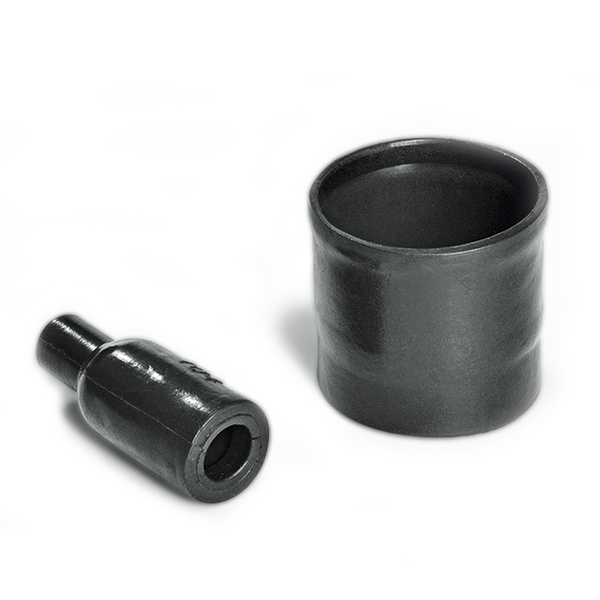

Bottle Shapes, MIL-Style
Art.-No. 401-07061 | 107-50-L-FPMX-BK | Details

100 series supplied / fully recovered.

With circular grooved adaptor for strain relief
Combine with complementary adhesives for environmental sealing
Suitable for small cable diameters

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Bottle Shapes, MIL-Style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	107-50-L
Material	Fluoropolymer, cross-linked (FPMX)
PART DESCRIPTION	107-50-L-FPMX-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 100 Series, with rib
Product Group	Bottle Shapes, MIL-Style
Type	107-50-L

Product Dimensions


Flexibility	Flexible
HW ± 20%	3.1mm
JW ± 20%	3.1mm
P ± 10%	89.7mm
R max	32.2mm
S nom	39.6mm
T ± 20%	1.7mm
∅H max b	35.1mm
∅H min a	50mm
∅J max b	15.8mm
∅J min. a	32mm

Downloads

Specifications

Dielectric Strength	9kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature	+135 °C
Operating Temperature	-55 °C to +200 °C
ROHS compliant	Yes
Specifications
Tensile Strength	13MPa
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660552366

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
