Right-Angle Shapes, VG-Style
Art.-No. 411-57014 | 1157-4-JWM250-PO-X-BK | Details

1152-4-G recovered on to a connector.

Used in conjunction with a circular grooved adaptor
Provides strain relief and an environmental seal

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Right-Angle Shapes, VG-Style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	1157-4-JWM250
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1157-4-JWM250-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 1100 Series, with rib
Product Group	Right-Angle Shapes, VG-Style
Type	1157-4-JWM250
Variant	For plug

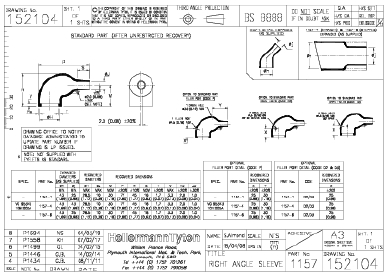

Product Dimensions


Angle	90
Flexibility	Flexible
HW ± 20%	2mm
JW ± 30%	1mm
M nom	30mm
R ± 10%	45mm
S nom	16mm
T ± 20%	1.7mm
V max	3.3mm
Weight/Unit	0.013kg
∅H max b	28.5mm
∅H min a	43mm
∅J max b	10mm
∅J min. a	43mm

Downloads

Specifications

Adhesive	WM250
Dielectric Strength	18kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature	+135 °C
Operating Temperature	-55 °C to +150 °C
ROHS compliant	Yes
Specifications
Tensile Strength	19MPa

Logistics and Packaging

Country of Origin	GB
Packaging 1 - Height (m)	0.050m
Packaging 1 - Length (m)	0.120m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.0006m³
Packaging 1 - Weight (kg)	0.013001kg
Packaging 1 - Width (m)	0.100m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
