Right-Angle Shapes, VG-Style
Art.-No. 411-58012 | 1158-4-J-PO-X-BK | Details

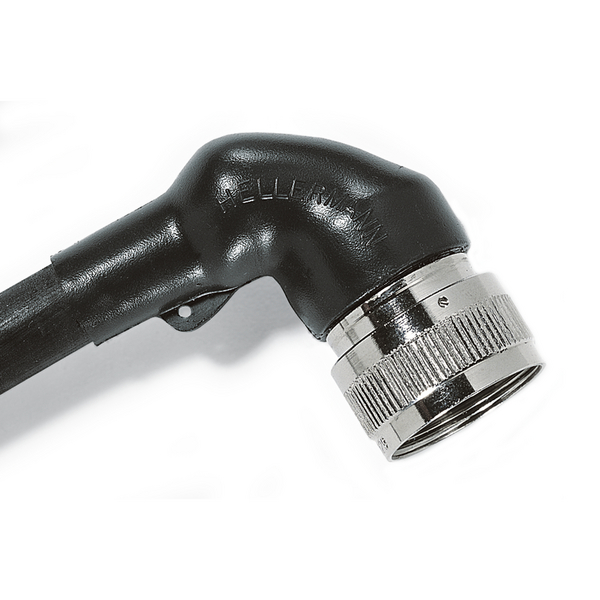

1152-4-G recovered on to a connector.

Used in conjunction with a circular grooved adaptor
Provides strain relief and an environmental seal

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Right-Angle Shapes, VG-Style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	1158-4-J
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1158-4-J-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 1100 Series, with rib
Product Group	Right-Angle Shapes, VG-Style
Type	1158-4-J
Variant	For plug

Product Dimensions


Angle	90
Flexibility	Flexible
HW ± 20%	3.3mm
JW ± 30%	1.5mm
M nom	35mm
P ± 20%	101mm
R ± 10%	54mm
S nom	30mm
T ± 20%	1.7mm
V max	3.3mm
Weight/Unit	0.033kg
∅H max b	35mm
∅H min a	60mm
∅J max b	16mm
∅J min. a	60mm

Downloads

Specifications

Dielectric Strength	18kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature	+135 °C
Nato number	5970-99-772-9747
Operating Temperature	-55 °C to +135 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications
Tensile Strength	19MPa
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660416828
Packaging 1 - Height (m)	0.070m
Packaging 1 - Length (m)	0.200m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00182m³
Packaging 1 - Weight (kg)	0.033001kg
Packaging 1 - Width (m)	0.130m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
