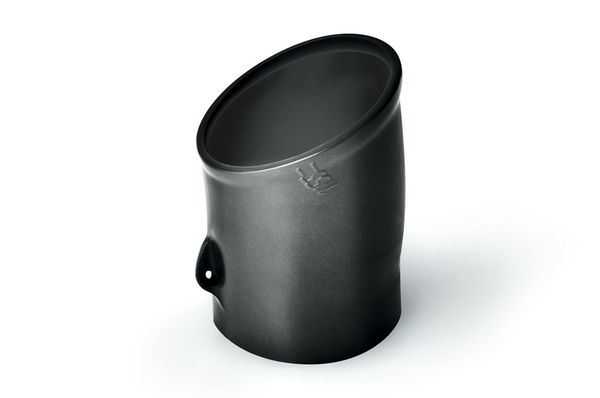

Right-Angle Shape VG-Style with Rib for Plugs black, PO-X, up to 3:1
Art.-No. 411-59480 | 1159-4-G-PO-X-BK | Details

1152-4-G recovered on to a connector.

Used in conjunction with a circular grooved adaptor
Provides strain relief and an environmental seal

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

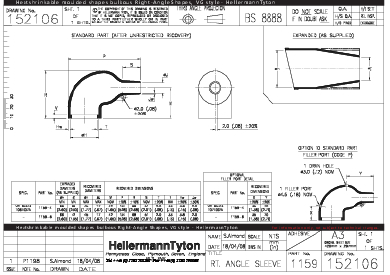

Downloads CAD-Download

More products in this product group:

Right-Angle Shapes, VG-Style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	VG95343T06E007A
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1159-4-G-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	pcs.
Product Family	Helashrink 1100 Series, with rib
Product Group	Right-Angle Shapes, VG-Style
Short Description	Right-Angle Shape VG-Style with Rib for Plugs black, PO-X, up to 3:1
Shrink Ratio	up to 3:1
Type	1159-4-G
Variant	For plug

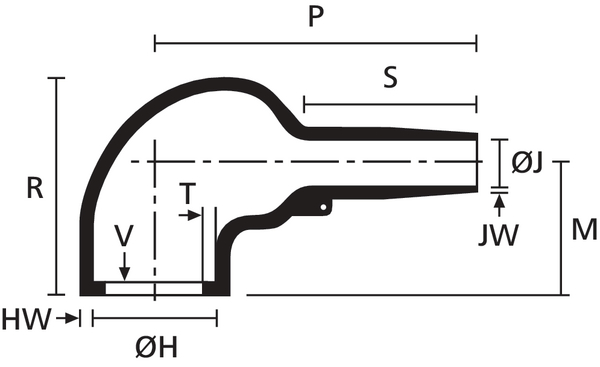

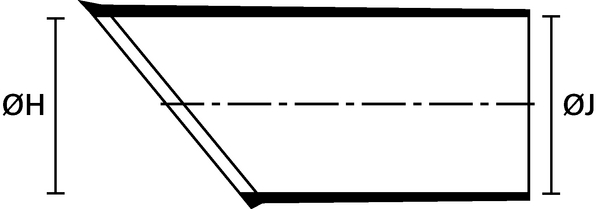

Product Dimensions


Angle	90
Flexibility	Semi rigid
HW ± 20%	3.8mm
JW ± 20%	2.0mm
JW ± 30%	2.0mm
M nom	42.0mm
P ± 20%	134.0mm
R ± 10%	68.0mm
S nom	51.0mm
T ± 10%	2.0mm
T ± 20%	2.0mm
V max	3.3mm
Weight/Unit	0.07kg
∅H max b	45.0mm
∅H min a	66.0mm
∅J max b	17.0mm
∅J min. a	66.0mm

Downloads

Specifications

Designation as per VG-Norm	VG 95343 T06 E 007 A
Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
ELV compliant Dir. Art. 4 (2)	YES
Flammability	ASTM D635
Hazardous Goods	No
Minimum Shrink Temperature	+135 °C
Nato number	5970-99-027-0016, 5970-12-317-4302
Operating Temperature	-75 °C to +150 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications
Specifications	VG 95343-6
Tensile Strength	15MPa

Logistics and Packaging


Country of Origin	GB
Customs Number	39174000
GTIN-13 / EAN	5022660635151
Packaging 1 - Height (m)	0.07m
Packaging 1 - Length (m)	0.13m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00091m³
Packaging 1 - Weight (kg)	0.070001kg
Packaging 1 - Width (m)	0.1m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
