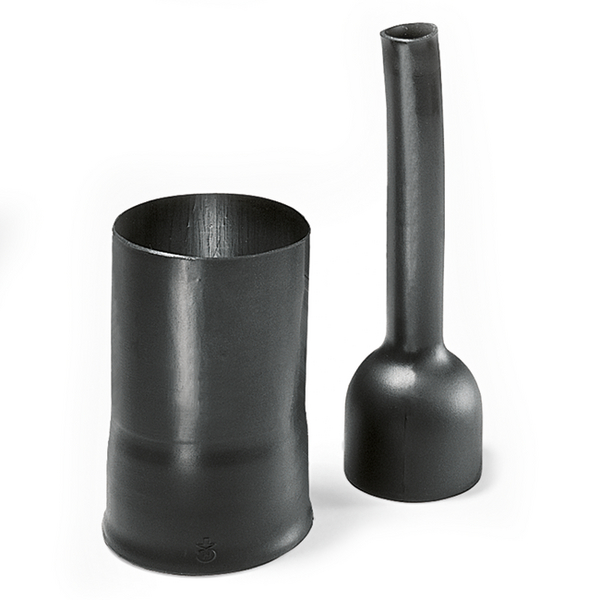

Long Outlet Shape, VG style
Art.-No. 401-30007 | 130-1-J-PO-X-BK | Details

135-1-G as supplied / fully recovered.

Low profile and lightweight
Typically used on airborne harnesses
Rib locates on circular backshell

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Long Outlet Shape, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	130-1-J
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	130-1-J-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 130 Series, with rib, low profile
Product Group	Long Outlet Shape, VG style
Type	130-1-J
Variant	For plug

Product Dimensions


HW ± 20%	1.5mm
P ± 10%	83mm
R nom	12mm
S nom	60mm
T ± 20%	1mm
V max	3.3mm
V ± 10%	3mm
∅H max b	15mm
∅H min a	25.2mm
∅J max b	7.5mm
∅J min. a	25.5mm

Downloads

Specifications

Minimum Shrink Temperature	+135 °C
Nato number	5975-99-657-5991
ROHS compliant	Yes
Specifications
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660423178

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
