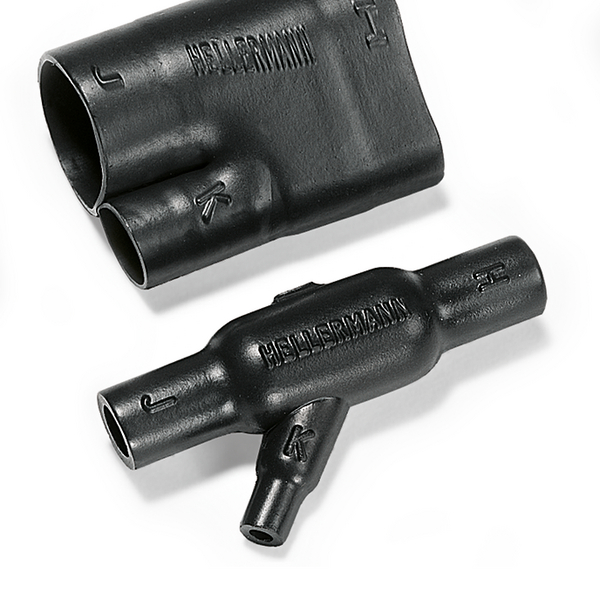

Angled T-Shapes, VG style
Art.-No. 413-07008 | 1307-1-J-PO-X-BK | Details

1303-1-G supplied / fully recovered.

Strain relief, sealing and mechanical protection on cable harnesses
Branching part 30° & 45° Y-joint
Mechanical strain relief for cable harnesses

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Angled T-Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	1307-1-J
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1307-1-J-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 1300 Series, 30° & 45° angle
Product Group	Angled T-Shapes, VG style
Type	1307-1-J
Variant	For 2-core cables

Product Dimensions


Angle	45
Flexibility	Flexible
HW ± 30%	2.5mm
JW ± 30%	1.5mm
KW ± 20 %	1.5mm
P ± 10%	90mm
R nom	42mm
R ± 10%	42mm
S nom	43mm
S ± 10%	43mm
Weight/Unit	0.017kg
∅H max b	12.5mm
∅H min a	27mm
∅J max b	6mm
∅J min. a	13mm
∅J/K max. b	6mm
∅J/K min. a	13mm
∅K max. b	6mm
∅K min. a	13mm

Downloads

Specifications

Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature	+135 °C
Nato number	5970-01-079-1503
Operating Temperature	-55 °C to +135 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660424489
Packaging 1 - Height (m)	0.020m
Packaging 1 - Length (m)	0.150m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.0003m³
Packaging 1 - Weight (kg)	0.017001kg
Packaging 1 - Width (m)	0.100m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
