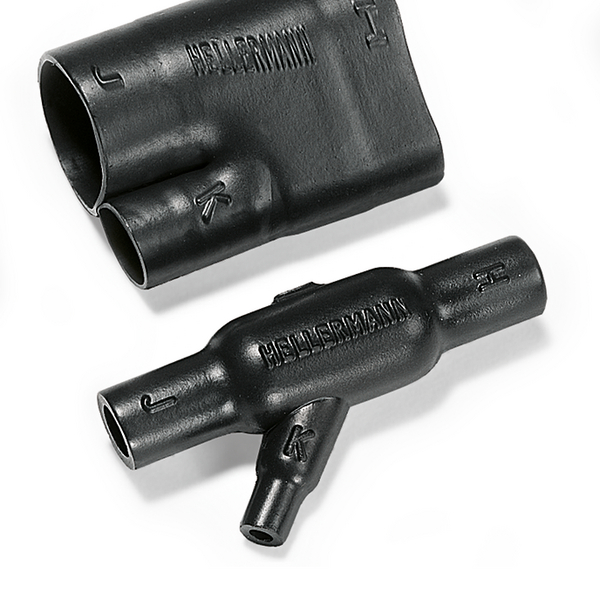

Angled T-Shapes, VG style
Art.-No. 413-11001 | 1311-1-B7-PO-X-BK | Details

1303-1-G supplied / fully recovered.

Strain relief, sealing and mechanical protection on cable harnesses
Branching part 30° & 45° Y-joint
Mechanical strain relief for cable harnesses

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Angled T-Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	1311-1-B7
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1311-1-B7-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 1300 Series, 30° & 45° angle
Product Group	Angled T-Shapes, VG style
Type	1311-1-B7
Variant	For 2-core cables

Product Dimensions


Angle	30
Flexibility	Semi rigid
HW ± 20%	2.5mm
HW ± 30%	2.5mm
JW ± 20%	2.5mm
JW ± 30%	2.5mm
KW ± 20 %	1.8mm
P ± 10%	82.6mm
R ± 10%	31.8mm
S ± 10%	50.8mm
Weight/Unit	0.019kg
∅H max b	15.2mm
∅H min a	30.4mm
∅J max b	15.2mm
∅J min. a	30.4mm
∅K max. b	10.2mm
∅K min. a	20.3mm

Downloads

Specifications

Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature	+135 °C
Nato number	5970-00-908-5001
Operating Temperature	-55 °C to +135 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications
Tensile Strength	13MPa
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660424724
Packaging 1 - Height (m)	0.050m
Packaging 1 - Length (m)	0.200m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.0012m³
Packaging 1 - Weight (kg)	0.019001kg
Packaging 1 - Width (m)	0.120m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
