Long Outlet Shape, VG style
Art.-No. 401-32067 | 132-52-L-FPMX-BK |  Details

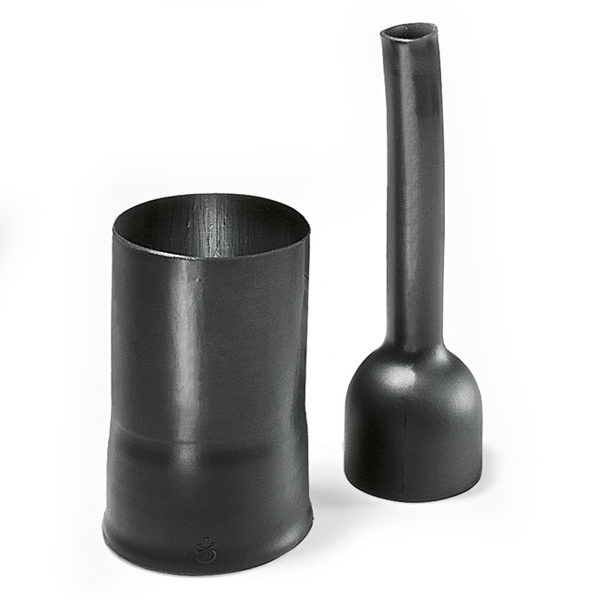

135-1-G as supplied / fully recovered.

    • Low profile and lightweight
    • Typically used on airborne harnesses
    • Rib locates on circular backshell
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Local order number 176-50-LP1AV
    Material Fluoroelastomer, cross-linked (FPMX)
    PART DESCRIPTION 132-52-L-FPMX-BK
    Pack Cont. 1pc.
    Package Content packed in Bag
    Product Family Helashrink 130 Series, with rib, low profile
    Product Group Long Outlet Shape, VG style
    Type 132-52-L
    Variant For plug
    Flexibility Flexible
    HW ± 20% 1.8mm
    JW ± 30% 1.1mm
    P ± 10% 159.5mm
    R nom 12mm
    S nom 130.5mm
    T ± 20% 1mm
    V max 3.3mm
    Weight/Unit 0.022kg
    ∅H max b 23mm
    ∅H min a 34mm
    ∅J max b 10mm
    ∅J min. a 19.4mm
    Flammability ASTM D635
    Minimum Shrink Temperature +135 °C
    Nato number 5970-01-105-8723
    Operating Temperature -55 °C to +200 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Tensile Strength 13MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660666629
    Minimum Order Quantity 50
    Packaging 1 - Height (m) 0.050m
    Packaging 1 - Length (m) 0.160m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0008m³
    Packaging 1 - Weight (kg) 0.022001kg
    Packaging 1 - Width (m) 0.100m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
