Long Outlet Shape, VG style
Art.-No. 401-35017 | 135-1-G-PO-X-BK |  Details

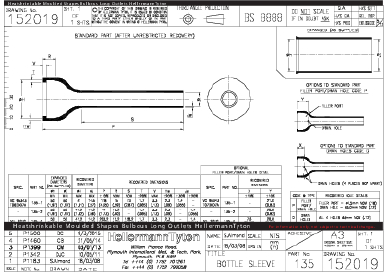

135-1-G as supplied / fully recovered.

    • Low profile and lightweight
    • Typically used on airborne harnesses
    • Rib locates on circular backshell
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Local order number 135-1-G
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 135-1-G-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in Bag
    Product Family Helashrink 130 Series, with rib, low profile
    Product Group Long Outlet Shape, VG style
    Type 135-1-G
    Variant For plug
    Flexibility Semi rigid
    HW ± 20% 2.3mm
    JW ± 20% 1.4mm
    JW ± 30% 1.4mm
    P ± 10% 118mm
    R nom 15mm
    R ± 10% 15mm
    S nom 73mm
    T ± 20% 1.7mm
    V max 3.3mm
    V ± 10% 3mm
    Weight/Unit 0.018kg
    ∅H max b 41mm
    ∅H min a 50mm
    ∅J max b 14.5mm
    ∅J min. a 50mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Minimum Shrink Temperature +135 °C
    Nato number 5970-12-305-9883
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Tensile Strength 15MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660427169
    Packaging 1 - Height (m) 0.060m
    Packaging 1 - Length (m) 0.200m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00144m³
    Packaging 1 - Weight (kg) 0.018001kg
    Packaging 1 - Width (m) 0.120m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
