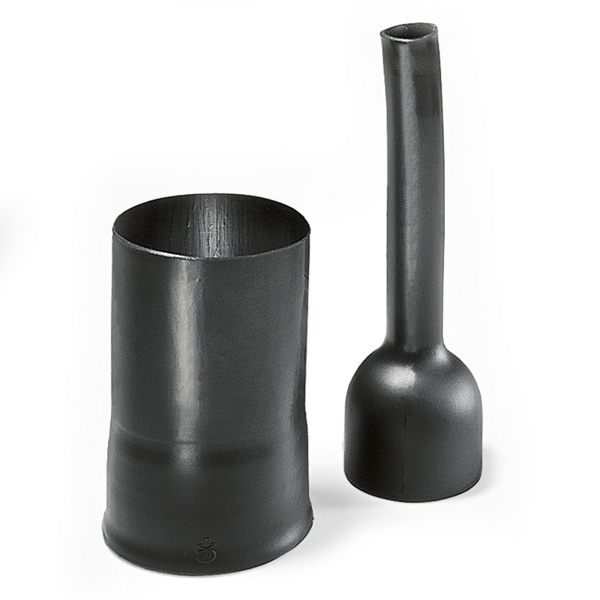

Long Outlet Shape, VG style
Art.-No. 401-36004 | 136-4-B7-PO-X-BK Details

  • Low profile and lightweight
  • Typically used on airborne harnesses
  • Rib locates on circular backshell

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour Black (BK)
Local order number 136-4-B7
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 136-4-B7-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 130 Series, with rib, low profile
Product Group Long Outlet Shape, VG style
Type 136-4-B7
Variant For plug
HW ± 20% 2.5mm
JW ± 20% 1.4mm
P ± 10% 203.2mm
R nom 16mm
R ± 10% 16mm
S nom 153.2mm
T ± 10% 2mm
T ± 20% 2mm
V max 3.3mm
V ± 10% 3mm
Weight/Unit 0.050kg
∅H max b 47mm
∅H min a 62.7mm
∅J max b 17.5mm
∅J min. a 62.7mm
Minimum Shrink Temperature +135 °C
Operating Temperature -55 °C to +135 °C
ROHS compliant Yes
Shelf Life 5 years
Specifications
UV-Stabilised No
Country of Origin GB
Packaging 1 - Height (m) 0.070m
Packaging 1 - Length (m) 0.200m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00168
Packaging 1 - Weight (kg) 0.050001kg
Packaging 1 - Width (m) 0.120m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
