Long Outlet Shapes
Art.-No. 401-48006 | 148-1-G-PO-X-BK |  Details

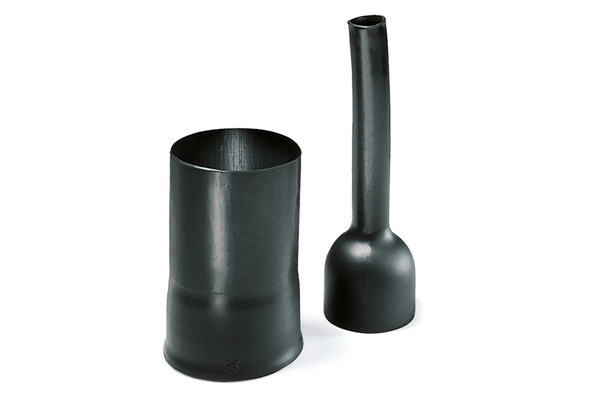

135-1-G as supplied / fully recovered.

    • Low profile and light weight style
    • Ideally suited to aerospace harness assemblies
    • Extended tail provides excellent strain relief and flexibility
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Local order number 148-1-G
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 148-1-G-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in Bag
    Product Family Helashrink 140 Series, without rib
    Product Group Long Outlet Shapes
    Type 148-1-G
    Flexibility Semi rigid

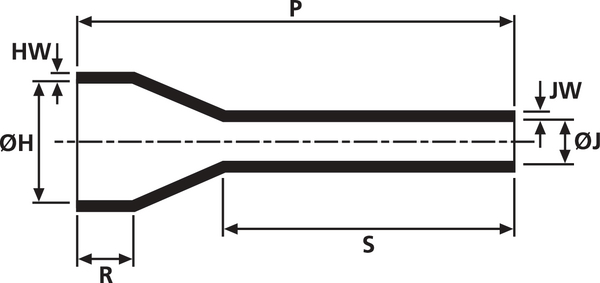

    HW ± 20% 2.0mm
    JW ± 30% 2.0mm
    P ± 10% 146.0mm
    R nom 15.7mm
    R ± 10% 15.7mm
    S nom 125.0mm
    W ± 20 % 2.3mm
    Weight/Unit 0.012kg

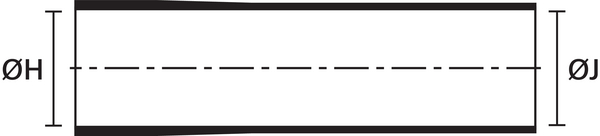

    ∅H max b 18.0mm
    ∅H min a 30.5mm
    ∅J max b 7.9mm
    ∅J min. a 30.5mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Minimum Shrink Temperature +135 °C
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660428548
    Packaging 1 - Height (m) 0.050m
    Packaging 1 - Length (m) 0.160m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00096m³
    Packaging 1 - Weight (kg) 0.012001kg
    Packaging 1 - Width (m) 0.120m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
