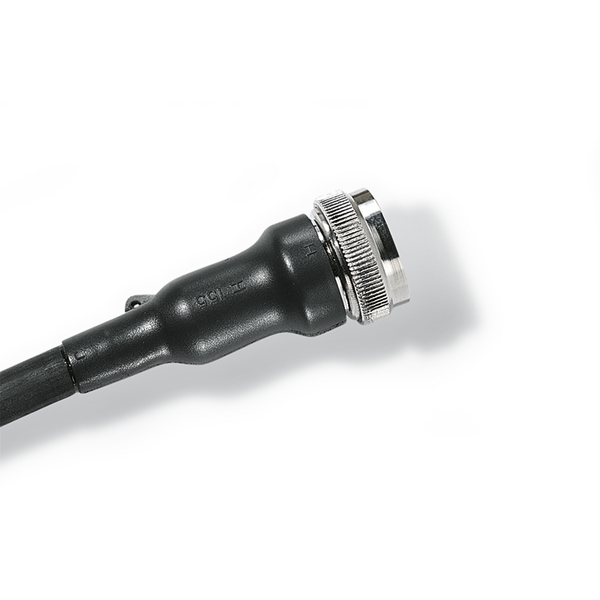

Bottle Shapes, VG style
Art.-No. 401-53001 | 153-41-B7-PO-X-BK Details

  • Use in conjunction with circular grooved adaptors
  • Strengthened strain relief by usage of an additional inner lip
  • Excellent protection against environment impacts
  • Eliminates moisture ingress to harness

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour Black (BK)
Local order number 153-41-B7
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 153-41-B7-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 150 Series, with rib
Product Group Bottle Shapes, VG style
Type 153-41-B7
Variant For plug
Flexibility Semi rigid
HW ± 20% 1.8mm
JO ± 10% 16mm
JW ± 20% 0.5mm
JW ± 30% 0.5mm
P ± 10% 40mm
R ± 10% 13mm
S nom 16mm
T ± 20% 1mm
V ± 10% 3mm
V ± 20% 3mm
Weight/Unit 0.003kg
∅H max b 14mm
∅H min a 25mm
∅J max b 3.5mm
∅J min. a 9mm
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
ELV compliant Dir. Art. 4 (2) YES
Flammability ASTM D635
Minimum Shrink Temperature +135 °C
Operating Temperature -55 °C to +135 °C
ROHS compliant Yes
Shelf Life 5 years
Specifications
UV-Stabilised No
Country of Origin GB
Customs Number 39174000
GTIN-13 / EAN 5022660679919
Packaging 1 - Height (m) 0.030m
Packaging 1 - Length (m) 0.120m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00036
Packaging 1 - Weight (kg) 0.003001kg
Packaging 1 - Width (m) 0.100m
Packaging 2 - Qty 0
Packaging 3 - Qty 0
Packaging 4 - Qty 0
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
