Bottle Shapes, VG style
Art.-No. 401-54080 | 154-41-H-PO-X-BK |  Details

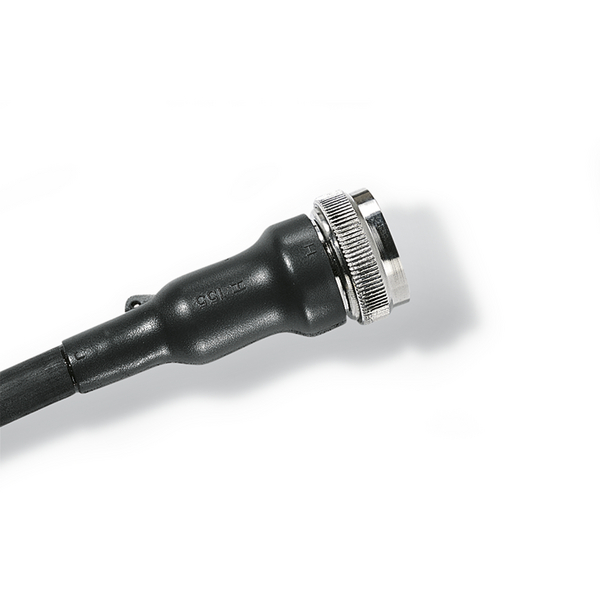

150 Series boot recovered onto a connectors.

    • Use in conjunction with circular grooved adaptors
    • Strengthened strain relief by usage of an additional inner lip
    • Excellent protection against environment impacts
    • Eliminates moisture ingress to harness
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Local order number 154-41-HW8
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 154-41-H-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in Bag
    Product Family Helashrink 150 Series, with rib
    Product Group Bottle Shapes, VG style
    Type 154-41-H
    Variant For plug
    HW ± 20% 1.8mm
    JW ± 30% 1.0mm
    P ± 10% 43mm
    R nom 20mm
    S nom 13mm
    T ± 20% 1.0mm
    V ± 10% 3.0mm
    Weight/Unit 0.006kg
    ∅H max b 14mm
    ∅H min a 30mm
    ∅J max b 6mm
    ∅J min. a 30mm
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660662393
    Minimum Order Quantity 25
    Packaging 1 - Height (m) 0.004m
    Packaging 1 - Length (m) 0.012m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0m³
    Packaging 1 - Weight (kg) 0.006001kg
    Packaging 1 - Width (m) 0.010m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
