Bottle Shapes, VG style
Art.-No. 401-56025 | 156-42-J-PO-X-BK |  Details

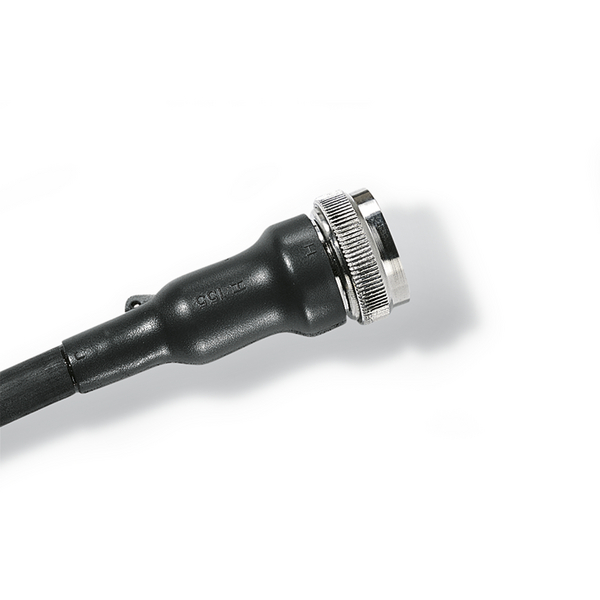

150 Series boot recovered onto a connectors.

    • Use in conjunction with circular grooved adaptors
    • Strengthened strain relief by usage of an additional inner lip
    • Excellent protection against environment impacts
    • Eliminates moisture ingress to harness
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Local order number 156-42-J
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 156-42-J-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in Bag
    Product Family Helashrink 150 Series, with rib
    Product Group Bottle Shapes, VG style
    Type 156-42-J
    Variant For plug
    HW ± 20% 2mm
    JW ± 30% 1mm
    P ± 10% 80mm
    R nom 42mm
    S nom 20mm
    T ± 10% 1mm
    T ± 20% 1.0mm
    V ± 10% 3.0mm
    Weight/Unit 0.008kg
    ∅H max b 22.5mm
    ∅H min a 36mm
    ∅J max b 8.5mm
    ∅J min. a 36mm
    Nato number 5970-01-081-6284
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660433498
    Packaging 1 - Height (m) 0.040m
    Packaging 1 - Length (m) 0.120m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00048m³
    Packaging 1 - Weight (kg) 0.008001kg
    Packaging 1 - Width (m) 0.100m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
