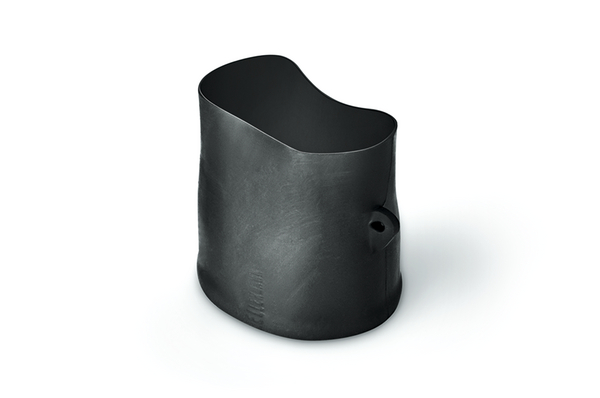

Bottle Shapes, VG style
Art.-No. 401-57058 | 157-42-GW24-PO-X-BK |  Details

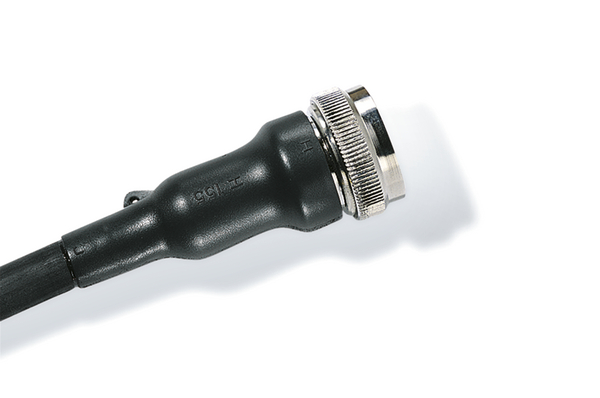

150 Series boot recovered onto a connectors.

    • Use in conjunction with circular grooved adaptors
    • Strengthened strain relief by usage of an additional inner lip
    • Excellent protection against environment impacts
    • Eliminates moisture ingress to harness
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Local order number 157-42-GW24
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 157-42-GW24-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in Bag
    Product Family Helashrink 150 Series, with rib
    Product Group Bottle Shapes, VG style
    Shrink Ratio up to 4.5:1
    Type 157-42-GW24
    Variant For plug
    Flexibility Semi rigid

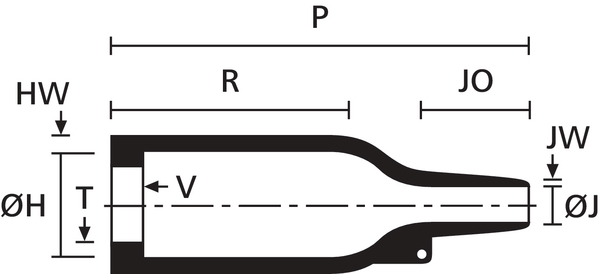

    HW ± 20% 2.2mm
    JW ± 20% 1mm
    JW ± 30% 1.0mm
    P ± 10% 79mm
    R nom 41mm
    R ± 10% 41mm
    S nom 20mm
    T ± 20% 1.7mm
    V ± 10% 3mm
    Weight/Unit 0.018kg

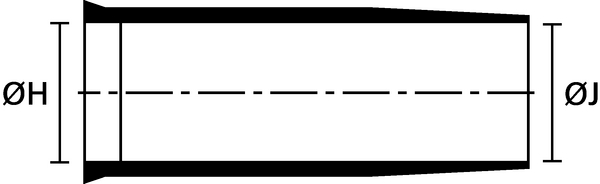

    ∅H max b 28mm
    ∅H min a 43mm
    ∅J max b 10mm
    ∅J min. a 43mm
    Adhesive W24
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Minimum Shrink Temperature +135 °C
    Nato number 5970-12-308-5083
    Operating Temperature -70 °C to +150 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 5022660433924
    Minimum Order Quantity 25
    Packaging 1 - Height (m) 0.050m
    Packaging 1 - Length (m) 0.200m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0012m³
    Packaging 1 - Weight (kg) 0.018001kg
    Packaging 1 - Width (m) 0.120m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
