Bottle Shapes, VG style
Art.-No. 401-78011 | 178-1-G-PO-X-BK |  Details

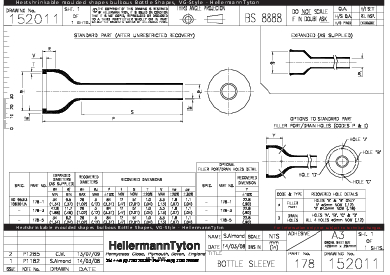

177-1-G as supplied / fully recovered.

    • Cable strain relief for partially loaded connectors
    • Small cable diameters
    • Use with our W24 adhesive for excellent chemical resistance
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Local order number 178-1-G
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 178-1-G-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in Bag
    Product Family Helashrink 170 Series, with rib
    Product Group Bottle Shapes, VG style
    Shrink Ratio up to 4:1
    Type 178-1-G
    Variant For plug
    Flexibility Semi rigid
    HW ± 20% 1.8mm
    JW nom 1.1mm
    JW ± 30% 1.1mm
    P ± 10% 84.3mm
    R nom 12mm
    R ± 10% 12.2mm
    S nom 51mm
    T ± 20% 1mm
    V max 3.3mm
    Weight/Unit 0.008kg
    ∅H max b 26mm
    ∅H min a 34.2mm
    ∅J max b 3.1mm
    ∅J min. a 9.6mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Minimum Shrink Temperature +135 °C
    Nato number 5970-99-787-6542, 5970-12-196-5889
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Tensile Strength 15MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660654152
    Packaging 1 - Height (m) 0.040m
    Packaging 1 - Length (m) 0.150m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0006m³
    Packaging 1 - Weight (kg) 0.008001kg
    Packaging 1 - Width (m) 0.100m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
