Angle Shapes
Art.-No. 418-30003 | 1830-4-G-PO-X-BK | Details

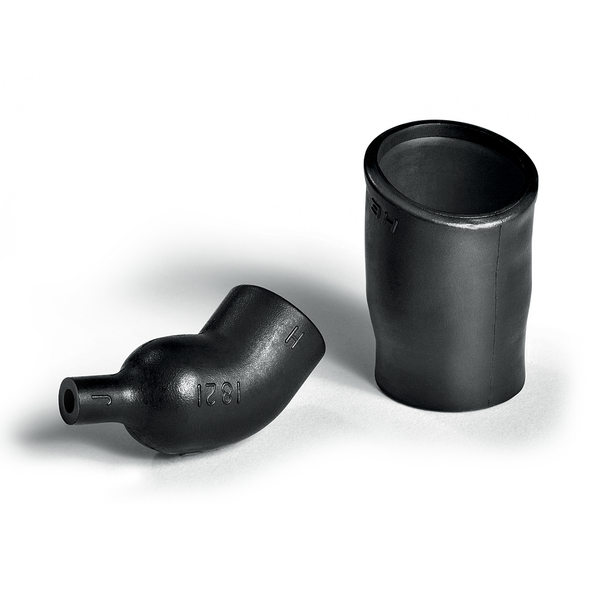

1821-42 supplied / fully recovered.

Provides strain relief and mechanical protection for harness systems
Use in conjunction with a circular grooved adaptor

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	1830-4-G
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1830-4-G-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 1800 Series, with rib, 30°, 45°, 60° angle
Product Group	Angle Shapes
Type	1830-4-G

Product Dimensions


Angle	30
Flexibility	Semi rigid
HW ± 20%	1.8mm
JW ± 20%	1.8mm
P ± 10%	55.0mm
R nom	35.0mm
R ± 10%	35.0mm
T ± 10%	2.0mm
T ± 20%	2.0mm
V max	3.5mm
∅H max b	17.9mm
∅H min a	31.0mm
∅J max b	7.0mm
∅J min. a	31.0mm

Downloads

Specifications

Minimum Shrink Temperature	+135 °C
ROHS compliant	Yes
Specifications
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660690181

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
