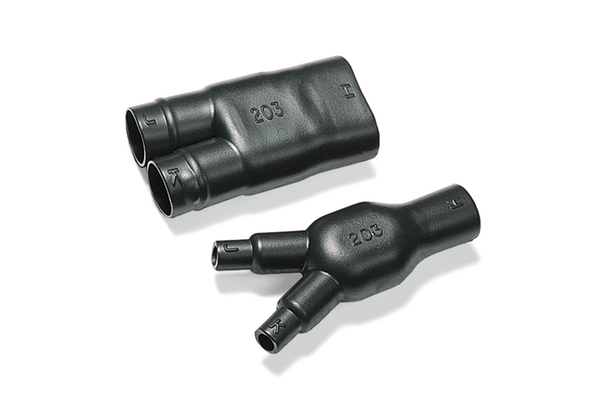

2-Way Outlet Shapes, VG style
Art.-No. 402-04021 | 204-1-G-PO-X-BK | Details

Two-way outlet shape 223-2 supplied / fully recovered.

Mechanical tension relief in cable harnesses

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

2-Way Outlet Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	204-1-G
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	204-1-G-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 200 Series
Product Group	2-Way Outlet Shapes, VG style
Type	204-1-G
Variant	For 2-core cables

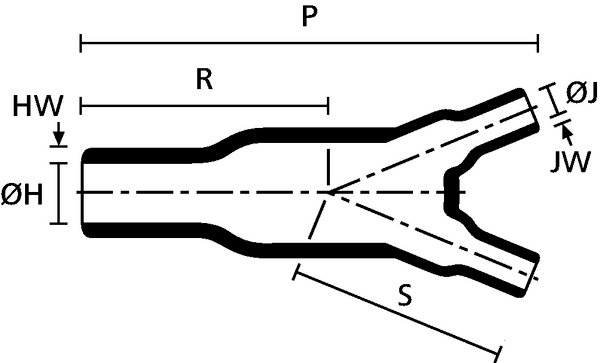

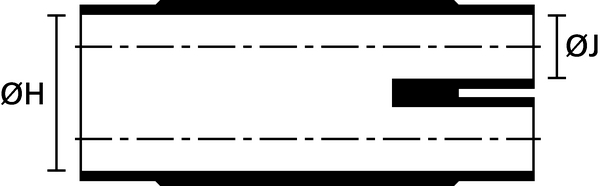

Product Dimensions


Flexibility	Semi rigid
HW ± 30%	3mm
JW nom	2mm
JW/KW ± 30%	2.5mm
P ± 10%	131mm
P ± 15%=overall length	131.0mm
R nom	66mm
R ± 10%	66mm
S nom	81mm
∅H max b	18mm
∅H min a	39mm
∅J max b	12mm
∅J min. a	27mm
∅J/K max. b	12mm
∅J/K min. a	27mm
∅K max. b	12mm
∅K min. a	27mm

Downloads

Specifications

Dielectric Strength	15kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature	+135 °C
Nato number	5970-12-310-2122
Operating Temperature	-75 °C to +150 °C
ROHS compliant	Yes
Specifications
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660444005

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
