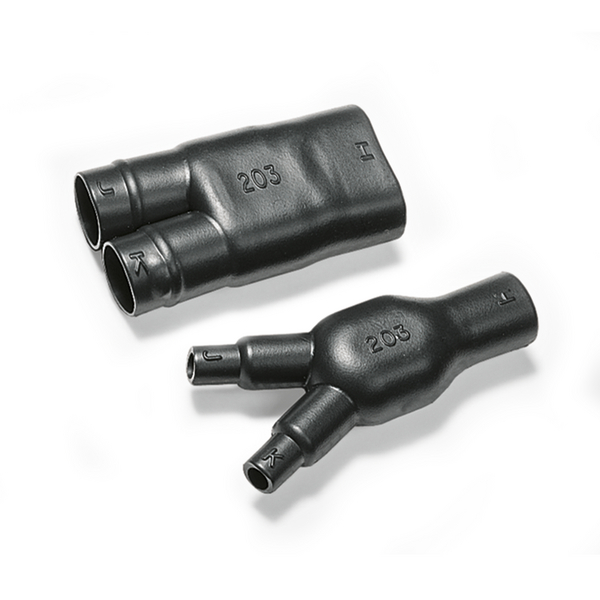

2-Way Outlet Shapes, VG style
Art.-No. 402-27009 | 227-1-J-PO-X-BK | Details

Two-way outlet shape 223-2 supplied / fully recovered.

Mechanical tension relief in cable harnesses

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

2-Way Outlet Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	227-1-J
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	227-1-J-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 200 Series
Product Group	2-Way Outlet Shapes, VG style
Type	227-1-J
Variant	For 2-core cables

Product Dimensions


Flexibility	Flexible
HW ± 20%	2mm
JW ± 20%	1mm
P ± 10%	22.3mm
R ± 10%	19.3mm
∅H max b	3.8mm
∅H min a	13.2mm
∅J max b	2.5mm
∅J min. a	6.6mm

Downloads

Specifications

Flammability	ASTM D635
Minimum Shrink Temperature	+135 °C
Nato number	5970-99-721-2946
Operating Temperature	-55 °C to +135 °C
ROHS compliant	Yes
Specifications
Tensile Strength	19MPa
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660448614

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
