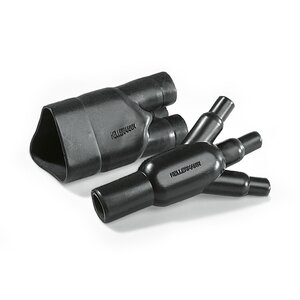

3-Way Outlet Shapes, VG style
Art.-No. 403-11018 | 311-1-G-PO-X-BK |  Details

304-1-G supplied / fully recovered.

    • Cable strain relief and mechanical protection at harness transition points
    • All outlets clearly marked to aid orientation during installation
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Application Tool H6100, E4500, CHG900
    Colour Black (BK)
    Local order number 311-1-G
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 311-1-G-PO-X-BK
    Pack Cont. 100pcs.
    Package Content packed in Bag
    Product Family Helashrink 300 Series
    Product Group 3-Way Outlet Shapes, VG style
    Shrink Ratio up to 3.5:1
    Type 311-1-G
    Variant For 3-core cables
    Flexibility Semi rigid
    HW ± 20% 4.5mm
    HW ± 30% 4.5mm
    JW ± 30% 3.0mm
    P ± 10% 192mm
    R ± 10% 103mm
    S ± 10% 103mm
    T ± 10% 89mm
    W ± 20 % 3mm
    ∅H max b 25.5mm
    ∅H min a 55.5mm
    ∅J max b 12.5mm
    ∅J min. a 27mm
    ∅J/K/L max. b 12.5mm
    ∅J/K/L min. a 27mm
    ∅K max. b 12.5mm
    ∅K min. a 27mm
    Dielectric Strength 15kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Minimum Shrink Temperature - °C +135 °C
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 15MPa
    Country of Origin GB
    GTIN-13 / EAN 5022660668470
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
