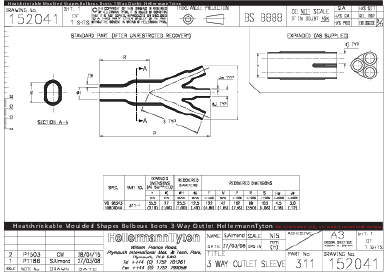

3-Way Outlet Shapes VG-Style black, PO-X, up to 3,5:1
Art.-No. 403-11180
| 311-1-G-PO-X-BK
|
Details
- Cable strain relief and mechanical protection at harness transition points
- All outlets clearly marked to aid orientation during installation
More products in this product group:
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Colour | Black (BK) |
| Local order number | VG95343T08D004A |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | 311-1-G-PO-X-BK |
| Pack Cont. | 1pc. |
| Package Content packed in | pcs. |
| Product Family | Helashrink 300 Series |
| Product Group | 3-Way Outlet Shapes, VG style |
| Short Description | 3-Way Outlet Shapes VG-Style black, PO-X, up to 3,5:1 |
| Shrink Ratio | up to 3.5:1 |
| Type | 311-1-G |
| Variant | For 3-core cables |
Download
| Designation as per VG-Norm | VG 95343 T08 D 004 A |
| Dielectric Strength | 15kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | ASTM D635 |
| Hazardous Goods | No |
| Minimum Shrink Temperature | +135 °C |
| Nato number | 5970-12-306-1532 |
| Operating Temperature | -75 °C to +150 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | VG 95343-8:2016-03 |
| Tensile Strength | 15MPa |
