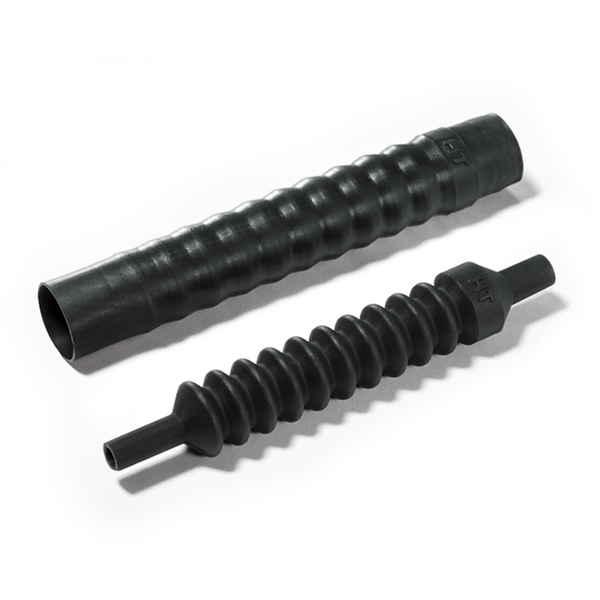

Low Profile Convolute Boots
Art.-No. 422-00413 | 313C764-9-PO-X-BK | Details

313C722-774 Series supplied / fully recovered.

For circular grooved adapters to provide strain relief
Excellent environmental sealing with adhesive
Convoluted design grants flexibility for different cable outlet angles

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Low Profile Convolute Boots >

Base Data

Application	Military and general performance harnessing.
Colour	Black (BK)
Local order number	313C764-9BF
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	313C764-9-PO-X-BK
Pack Cont.	5pcs.
Package Content packed in	Bag
Product Family	Helashrink 313C Series, with adapter lip
Product Group	Low Profile Convolute Boots
Shrink Ratio	3:1
Type	313C764-9
Variant	For plug

Product Dimensions


Flexibility	Flexible
HW ± 1.5	.06mm
JO ± 1.8	28.4mm
P ± 10%	171.4mm
R max	42.9mm
S ± 0.5	1.8mm
S ± 10%	28.4mm
T ± 0.5	2mm
T ± 0.8	2.0mm
W min.	1.5mm
Weight/Unit	0.033kg
∅H max b	27.9mm
∅H min a	53.8mm
∅J max b	22.3mm
∅J min. a	45.7mm

Downloads

Specifications

Dielectric Strength	20kV/mm
Flammability	ASTM D635
Minimum Shrink Temperature	+100 °C
Operating Temperature	-55 °C to 120 °C
ROHS compliant	Yes
Specifications
UV-Stabilised	No

Logistics and Packaging

Country of Origin

GB

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
