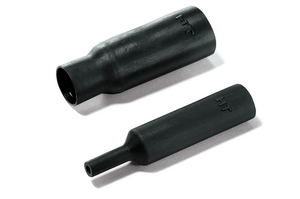

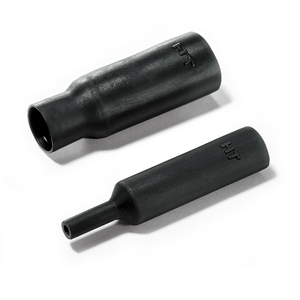

Low Profile Shim Boots
Art.-No. 422-10105 | 313E447-9W24-PO-X-BK | Details

313E445-457 Series supplied / fully recovered.

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Low Profile Shim Boots >

Base Data

Application	Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications
Application Tool	H6100, E4500, CHG900
Colour	Black (BK)
Local order number	313E447-9
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	313E447-9W24-PO-X-BK
Pack Cont.	5pcs.
Package Content packed in	Bag
Product Family	Helashrink 313E Series, without adapter lip
Product Group	Low Profile Shim Boots
Shrink Ratio	2:1
Type	313E447-9W24
Variant	For 3-core cables

Product Dimensions


Flexibility	Flexible
HO ± 10%	41.1mm
HW ± 25%	1.5mm
JO ± 10%	16.5mm
JW ± 25%	1.5mm
P ± 10%	63.5mm
R ± 10%	41.1mm
S ± 10%	16.5mm
Weight/Unit	0.004kg
∅H max b	14.7mm
∅H min a	2.8mm
∅J max b	9.9mm
∅J min. a	2.6mm

Downloads

Specifications

Adhesive	W24
Dielectric Strength	20kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature - °C	+100 °C
Operating Temperature	-55 °C to 120 °C
ROHS compliant	Yes
Specifications
Tensile Strength	12MPa

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	4031026711317

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
