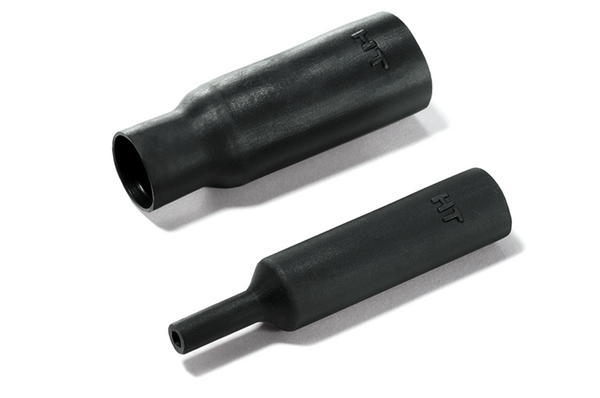

Low Profile Shim Boots
Art.-No. 422-10308 | 313E457-9-200-PO-X-BK | Details

313E445-457 Series supplied / fully recovered.

Used to build up or shim a cable diameter
Facilitates better fit for components in cable harness

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Low Profile Shim Boots >

Base Data

Application	Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications
Colour	Black (BK)
Local order number	313E457-9BF
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	313E457-9-200-PO-X-BK
Pack Cont.	5pcs.
Package Content packed in	Bag
Product Family	Helashrink 313E Series, without adapter lip
Product Group	Low Profile Shim Boots
Shrink Ratio	2:1
Type	313E457-9-200
Variant	For 3-core cables

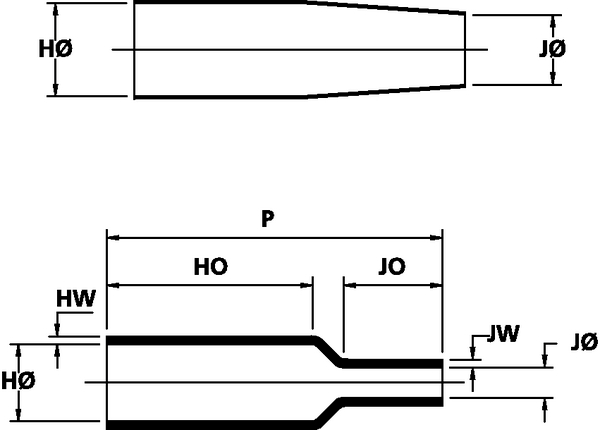

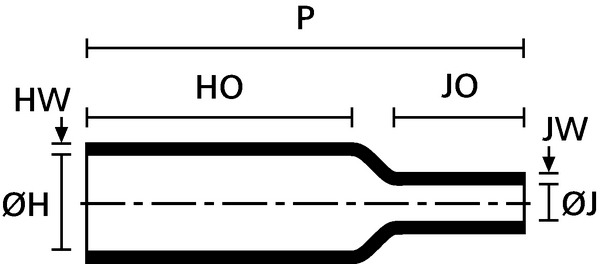

Product Dimensions


Flexibility	Flexible
HO ± 10%	27.9mm
HW ± 25%	2.3mm
JO ± 10%	14mm
JW ± 25%	1.5mm
P ± 10%	53.3mm
R ± 10%	27.9mm
S ± 10%	14mm
Weight/Unit	0.007kg
∅H max b	22.1mm
∅H min a	25.7mm
∅J max b	9.9mm
∅J min. a	2.6mm

Downloads

Specifications

Adhesive	200
Dielectric Strength	20kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature	+100 °C
Operating Temperature	-55 °C to 120 °C
ROHS compliant	Yes
Specifications
Tensile Strength	12MPa

Logistics and Packaging

Country of Origin

GB

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
