Low Profile Straight Boot with Adapter Lip black
Art.-No. 422-20000 | 313F322-9-PO-X-BK | Details

313F322-396 Series supplied / fully recovered.

Lightweight strain relief for small cable diameters requiring high shrink ratio

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Low Profile Straight Boots >

Base Data

Application	Military and general performance harnessing.
Colour	Black (BK)
Local order number	313F322-9
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	313F322-9-PO-X-BK
Pack Cont.	5pcs.
Package Content packed in	Bag
Product Family	Helashrink 313F Series, with adapter lip
Product Group	Low Profile Straight Boots
Short Description	Low Profile Straight Boot with Adapter Lip black
Shrink Ratio	3:1
Type	313F322-9
Variant	For plug

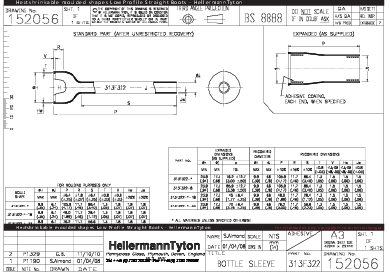

Product Dimensions


Flexibility	Flexible
HW ± 1.5	1.5mm
JO ± 10%	86.3mm
JW ± 0.8	1.5mm
P ± 10%	105.9mm
R ± 15%	11.6mm
S ± 1.5	1.5mm
T ± 0.8	1.3mm
Weight/Unit	0.006kg
∅H max b	9.9mm
∅H min a	23.8mm
∅J max b	6.6mm
∅J min. a	17.2mm

Downloads

Specifications

ELV compliant Dir. Art. 4 (2)	YES
Flammability	ASTM D635
Hazardous Goods	No
Minimum Shrink Temperature	+100 °C
Operating Temperature	-55 °C to 120 °C
ROHS compliant	Yes
Specifications
UV-Stabilised	No

Logistics and Packaging


Country of Origin	GB
Customs Number	39174000
GTIN-13 / EAN	5022660453854
Packaging 1 - Height (m)	0.05m
Packaging 1 - Length (m)	0.12m
Packaging 1 - Qty	5
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00042m³
Packaging 1 - Weight (kg)	0.030001kg
Packaging 1 - Width (m)	0.07m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
