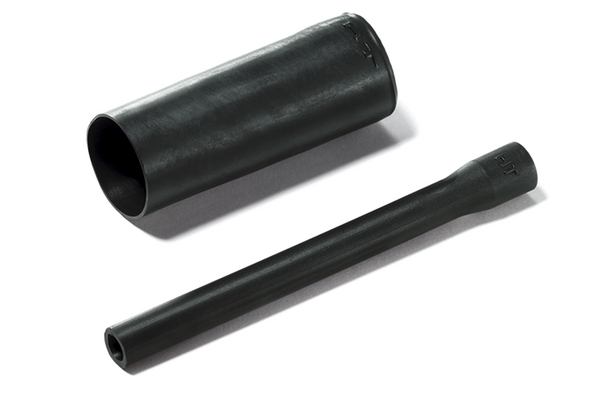

Low Profile Straight Boots
Art.-No. 422-20005 | 313F322-PO-X-BK | Details

313F322-396 Series supplied / fully recovered.

Lightweight strain relief for small cable diameters requiring high shrink ratio

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Low Profile Straight Boots >

Base Data

Application	Military and general performance harnessing.
Colour	Black (BK)
Local order number	313F322-6
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	313F322-PO-X-BK
Pack Cont.	5pcs.
Package Content packed in	Bag
Product Family	Helashrink 313F Series, with adapter lip
Product Group	Low Profile Straight Boots
Shrink Ratio	3:1
Type	313F322
Variant	For plug

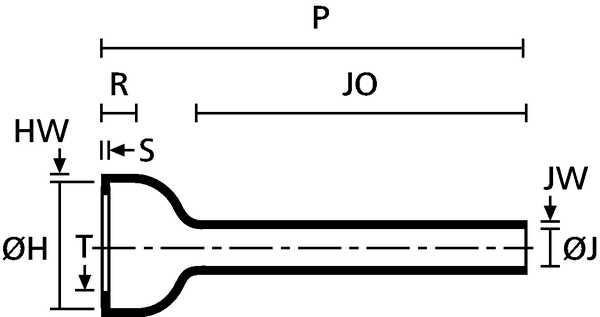

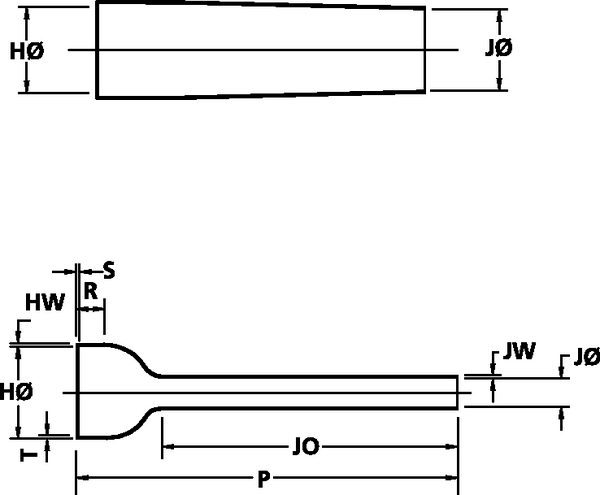

Product Dimensions


Flexibility	Flexible
HW ± 1.5	1.5mm
JO ± 10%	86.3mm
JW ± 0.8	1.5mm
P ± 10%	105.9mm
R ± 15%	11.6mm
S ± 1.5	1.5mm
T ± 0.8	1.3mm
Weight/Unit	0.004kg

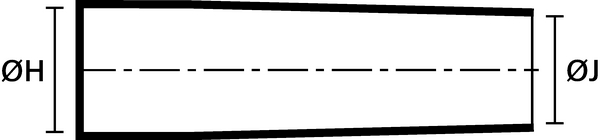

∅H max b	9.9mm
∅H min a	23.8mm
∅J max b	6.6mm
∅J min. a	17.2mm

Downloads

Specifications

Flammability	ASTM D635
Minimum Shrink Temperature	+100 °C
Operating Temperature	-55 °C to 120 °C
ROHS compliant	Yes
Specifications
Tensile Strength	12MPa
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660453793

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
