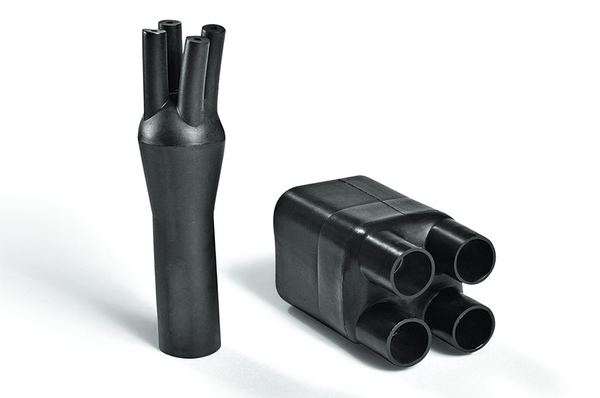

4-Way Outlet Shapes, VG style
Art.-No. 404-03019
| 403-1-GW24-PO-X-BK
|
Details
- 4-way outlet shape
- Cable sealing, strain relief and mechanical protection
Request your individual offer now
Request quote
More products in this product group:
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Colour | Black (BK) |
| Local order number | 403-1-GW24 |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | 403-1-GW24-PO-X-BK |
| Pack Cont. | 1pc. |
| Package Content packed in | Bag |
| Product Family | Helashrink 400 Series |
| Product Group | 4-Way Outlet Shapes, VG style |
| Shrink Ratio | up to 3:1 |
| Type | 403-1-GW24 |
| Variant | For 4-core cables |
|
|
| Flexibility | Semi rigid |

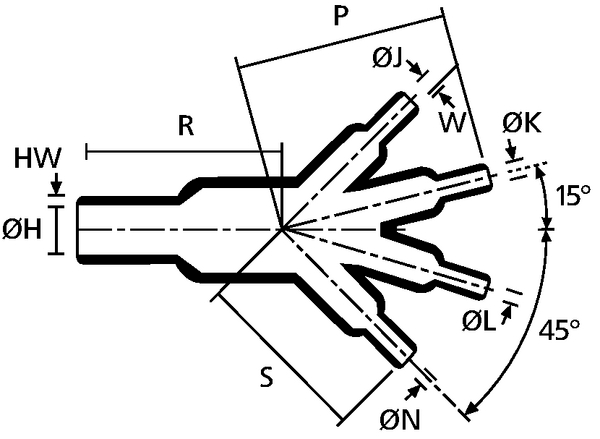

| HW ± 30% | 1.5mm |
| JW ± 30% | 1.5mm |
| P ± 10% | 102mm |
| P ± 15%=overall length | 102mm |
| R nom | 49mm |
| R ± 10% | 52mm |
| S nom | 45mm |
| S ± 10% | 45mm |
| T ± 10% | 49mm |
| Weight/Unit | 0.019kg |

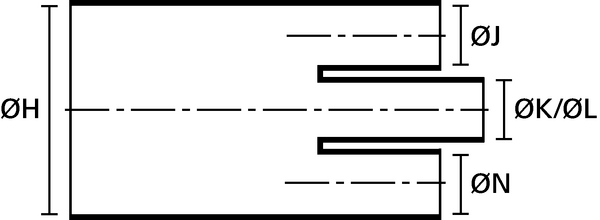

| ∅H max b | 13mm |
| ∅H min a | 27mm |
| ∅J max b | 7mm |
| ∅J min. a | 13mm |
| ∅J/K/L/N max. b | 7mm |
| ∅J/K/L/N min. a | 13mm |
| ∅K max. b | 7mm |
| ∅K min. a | 13mm |
