4-Way Outlet Shapes, VG style
Art.-No. 404-11001 | 411-1-B7-PO-X-BK | Details

442-1 supplied / fully recovered.

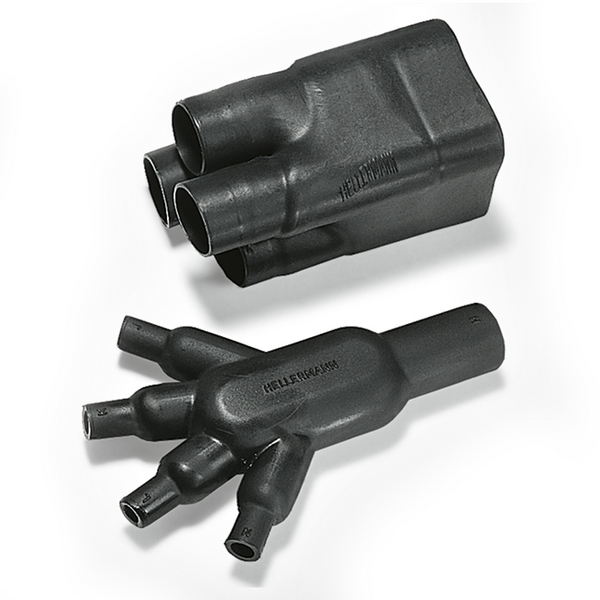

4-way outlet shape
Cable sealing, strain relief and mechanical protection

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

4-Way Outlet Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	411-1-B7
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	411-1-B7-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 400 Series
Product Group	4-Way Outlet Shapes, VG style
Type	411-1-B7
Variant	For 4-core cables

Product Dimensions


Flexibility	Semi rigid
HW ± 30%	2.0mm
JW ± 30%	1mm
P ± 10%	71mm
P ± 15%=overall length	71mm
R nom	36mm
R ± 10%	36mm
S nom	32mm
S ± 10%	32mm
T ± 10%	36mm
∅H max b	10mm
∅H min a	19mm
∅J max b	5.5mm
∅J min. a	9.5mm
∅J/K/L/N max. b	5.5mm
∅J/K/L/N min. a	9.5mm
∅K max. b	5.5mm
∅K min. a	9.5mm

Downloads

Specifications

Dielectric Strength	15kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature	+135 °C
Nato number	5970-00-939-8490
Operating Temperature	-50 °C to +80 °C
ROHS compliant	Yes
Specifications
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660461668

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
