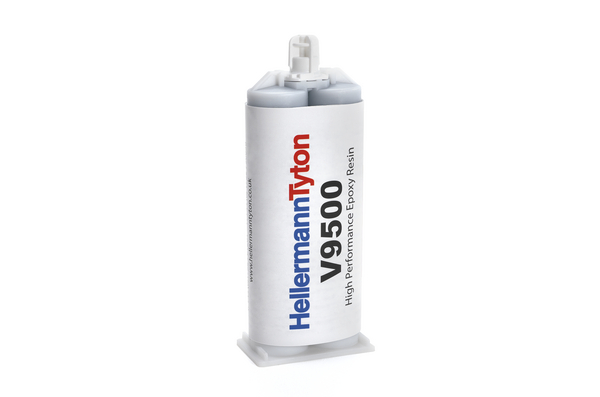

Two-Component Adhesiver 50g
Art.-No. 627-95002 | V9500 Epoxy Cartridge-EP-BK |  Details

V9500 - VG 95343 approved 2K Epoxy Adhesive Cartridge.

    • High performance, two-part epoxy adhesive
    • High performance bond, very resistant to most solvents and fuels, even at elevated temperatures
    • Two different packages available
    • Meets military requirements for heat shrinkable components for harnesses
    • VG-approved
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Colour Black (BK)
    Curing Method 2-components
    Description Two-component adhesive cartridge
    Local order number V9500-DUO-PAK
    Material Epoxy resins (EP)
    PART DESCRIPTION V9500 Epoxy Cartridge-EP-BK
    Pack Cont. 1pc.
    Package Content packed in pcs.
    Product Family V9500
    Product Group Two-Component Adhesive for Heat Shrinkable Tubing and Shapes
    Short Description Two-Component Adhesiver 50g
    Type V9500 Epoxy Cartridge
    Curing Time 24 hours at +25 °C, 2 hours at +85 °C
    Weight/Unit 0.08kg
    Curing Temperature +135 °C
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods Yes
    Insulating (Yes/No) No
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 35061000
    GTIN-13 / EAN 4031026185675
    Packaging 1 - Height (m) 0.025m
    Packaging 1 - Length (m) 0.115m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00013m³
    Packaging 1 - Weight (kg) 0.080001kg
    Packaging 1 - Width (m) 0.046m
    ETIM 7.0 Key EC000529
    ETIM 8.0 Key EC000529
    ETIM 9.0 Key EC000529
