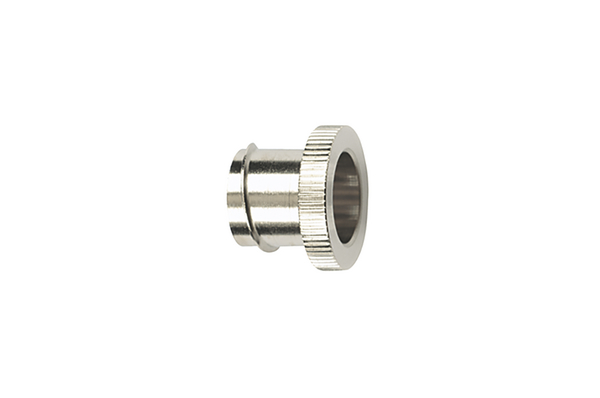

Metallic End Insert ø10mm
Art.-No. 166-32700 | LTS10-EI-NPB-ML |  Details

HelaGuard LTS-EI End Insert.

    • Single part
    • Caps end of conduit
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application Nickel plated brass.
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB)
    Metallic Fitting Type End insert
    PART DESCRIPTION LTS10-EI-NPB-ML
    Pack Cont. 10pcs.
    Package Content packed in Bag
    Product Family LTS-EI End Insert
    Product Group Fittings for metallic conduits with liquid-tight cover
    Short Description Metallic End Insert ø10mm
    Type LTS10-EI
    Type of connection Thread
    Variant Straight

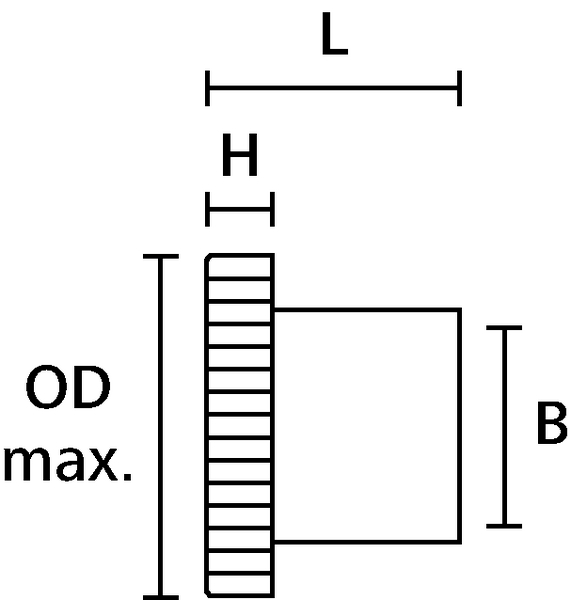

    Height (H) 3.6mm
    Length (L) 16.3mm
    Lowest inner diameter 5.6mm
    Min. Bore Size (B) 5.6mm
    Nominal ∅ 10mm
    Nominal ∅ (imperial) 0.38"
    Outside ∅ max (OD max.) 13.8mm
    Weight/Unit 0.01kg
    CAS Number 7439-92-1
    Critical Substance Lead in Copper alloy 4%
    EC Number 231-100-4
    ELV compliant Dir. Art. 4 (2) YES
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -100 °C to +300 °C
    ROHS compliant Yes
    Specifications
    Specifications BS EN 61386-23
    Country of Origin GB
    Customs Number 74122000
    GTIN-13 / EAN 4031026308470
    Packaging 1 - Height (m) 0.014m
    Packaging 1 - Length (m) 0.19m
    Packaging 1 - Qty 10
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00043m³
    Packaging 1 - Weight (kg) 0.100001kg
    Packaging 1 - Width (m) 0.16m
    ETIM 7.0 Key EC001180
    ETIM 8.0 Key EC001180
    ETIM 9.0 Key EC001180
