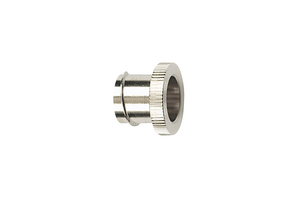

Metallic End Insert ø50mm
Art.-No. 166-32707 | LTS50-EI-NPB-ML |  Details

HelaGuard LTS-EI End Insert.

    • Single part
    • Caps end of conduit
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application Nickel plated brass.
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB)
    Metallic Fitting Type End insert
    PART DESCRIPTION LTS50-EI-NPB-ML
    Pack Cont. 1pc.
    Package Content packed in Bag
    Product Family LTS-EI End Insert
    Product Group Fittings for metallic conduits with liquid-tight cover
    Short Description Metallic End Insert ø50mm
    Type LTS50-EI
    Type of connection Thread
    Variant Straight
    Height (H) 8.1mm
    Length (L) 30.0mm
    Lowest inner diameter 37.6mm
    Min. Bore Size (B) 37.7mm
    Nominal ∅ 50mm
    Nominal ∅ (imperial) 2"
    Outside ∅ max (OD max.) 51.0mm
    Weight/Unit 0.05kg
    CAS Number 7439-92-1
    Critical Substance Lead in Copper alloy 4%
    EC Number 231-100-4
    ELV compliant Dir. Art. 4 (2) YES
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -100 °C to +300 °C
    ROHS compliant Yes
    Specifications
    Specifications BS EN 61386-23
    Country of Origin GB
    Customs Number 74122000
    GTIN-13 / EAN 4031026308548
    Packaging 1 - Height (m) 0.051m
    Packaging 1 - Length (m) 0.19m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00155m³
    Packaging 1 - Weight (kg) 0.050001kg
    Packaging 1 - Width (m) 0.16m
    ETIM 7.0 Key EC001180
    ETIM 8.0 Key EC001180
    ETIM 9.0 Key EC001180
